MMC Connectors

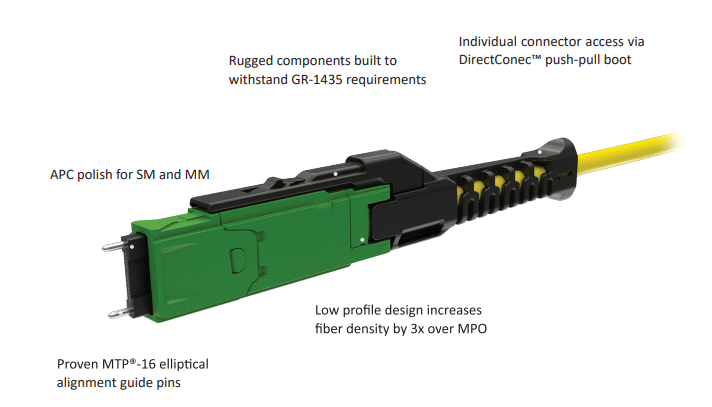

US Conec's MMC Connector is a Very Small Form Factor (VSFF) multi-fiber optical connector designed for termination of singlemode and multimode fiber cables up to 2.5mm in diameter. The MMC connector employs novel TMT ferrule technology harmonized with the MT-16 alignment structure. Individual connector access in the most extreme dense connector environments is easily accomplished using revolutionary DirectConec push-pull boot technology.

Features

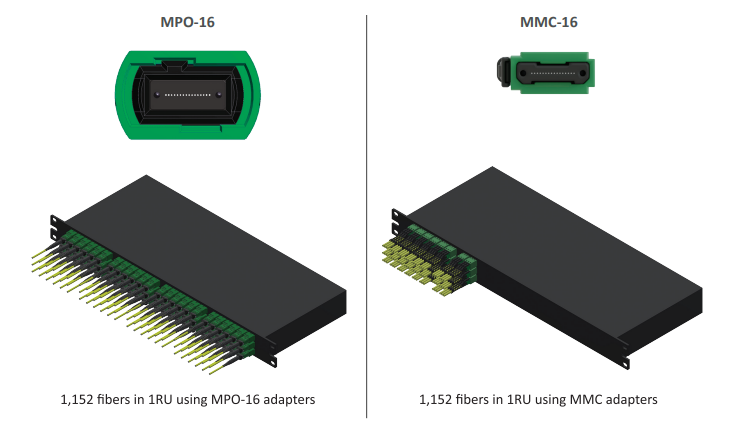

• 3x cabling port density over the MPO format
• DirectConec push-pull boot for effortless connector insertion and extraction
• Proven MT-16 mechanical and fiber alignment structure
• Compatible with standard 250 micron OD and pitch optical fiber
• Low-loss, IEC Grade B insertion loss performance (0.25dB 97% random intermate)
• APC for both singlemode and multimode applications
• Tested for Telcordia GR-1435
• Cables up to 2.5mm OD
• Standard cabling industry infrastructure support including IBC cleaners, polishers, interferometers, and optical testing equipment.

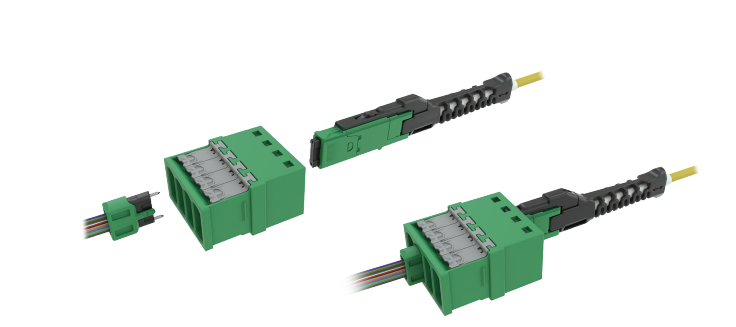

MMC Jr. and Adapter/Receptacle

The smaller footprint of the MMC Jr. connector maintains a robust connection while minimizing valuable space consumption on the boards or behind module panel walls.

Optimized for:

• Transceivers
• On-board Optics
• Module Applications

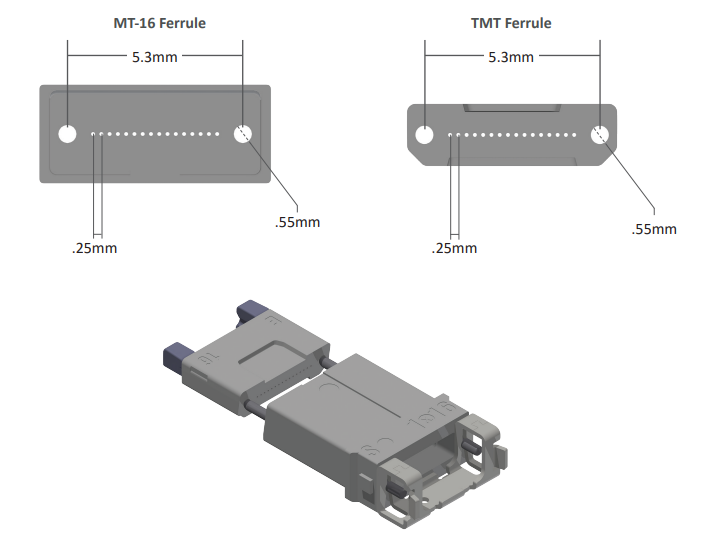

TMT Ferrule Technology

The TMT ferrule format is based on the proven alignment structure of MT-16 ferrules used in MTP-16 applications. Engineered for durability, the novel shoulder features ensure precision polishing combined with the mechanical integrity needed for repeated insertion and extraction cycles. In addition to MMC applications, TMT ferrules are ideal for on-board fiber management, as well as incorporation into transceivers and hardened connector embodiments.

• 16 fibers at 250 micron pitch
• Compatible with 250, 200, and 165 micron fibers
• Intermateable with MT-16 technology at less than 25% of the size

Ever-Increasing MMC Ecosystem

US Conec partners with industry leading vendors to develop components and equipment necessary to enhance the installer and end user experience.

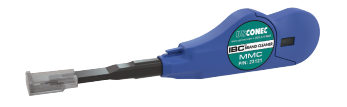

• IBC cleaning tools
• Polishing equipment
• Test and inspection equipment
• Interferometry

New Application Require a Reduced Format Connector

Next generation architectures are driving the need for optical connectivity solutions which cannot be met with the status quo. 51.2T switching for 500m reaches now requires fiber counts exceeding density capacities of the MPO format.

MMC Applications Include:

• Co-packaged Optics and on-board connectivity
• High bandwidth transceivers
• Maximum density, low-loss, pre-terminated cabling infrastructure

Want More Information?

Give Us a Call
