Wall Mount Termination Box with Double Door - Lockable - Includes x2 Slack Spools - Accepts x2 LGX Adapters Plates

Wall Mount Termination Box with Double Door - Lockable - Includes x2 Slack Spools - Accepts x2 LGX Adapters Plates (not included)
Item No: WTB-FWM-6202
Manufacturer: Fibertronics, Inc.
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$105.95

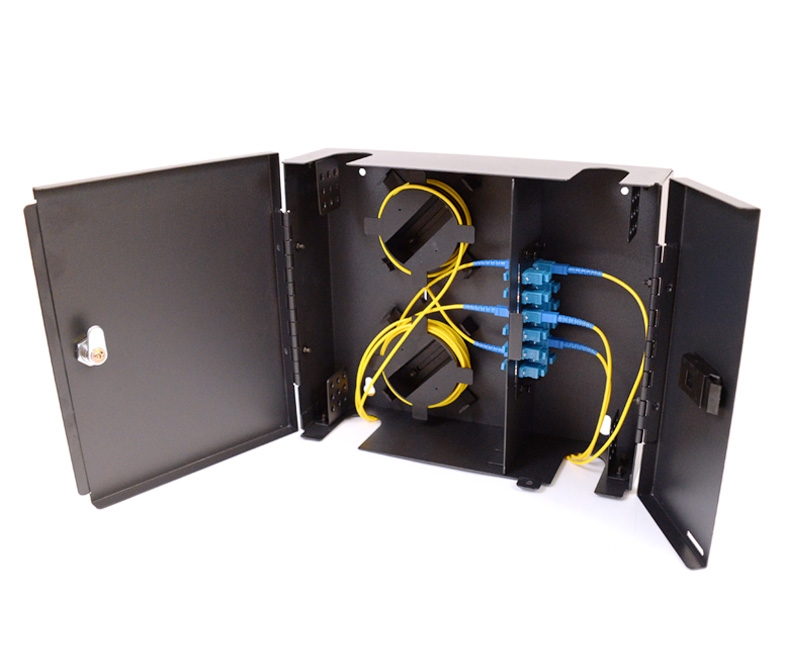

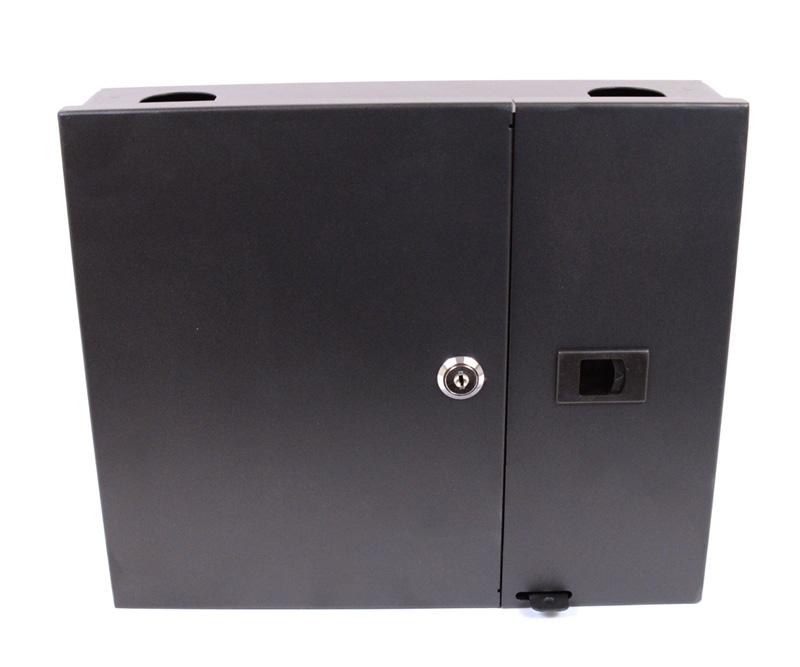

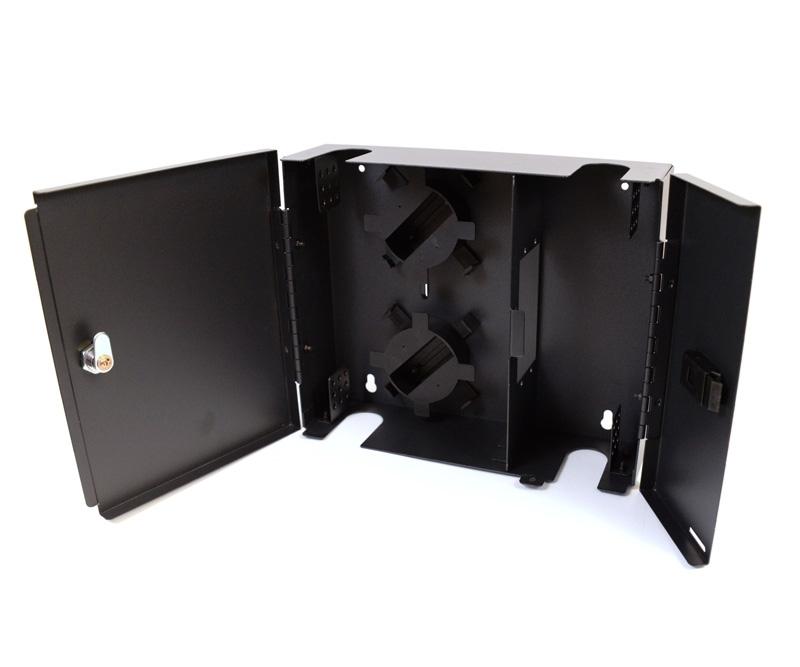

The WTB-FWM-6202 is a high-density wall-mount fiber optic enclosure. It offers an easy point of convergence for splicing and connecting in wall mount applications. The unit has 2 adapter panel positions allowing for a wide range of fiber termination connector types. It is equipped with a set of keys that allow access to the network side of the panel. If required a padlock can be added to the outer door which allows access to the distribution side, maintaining separation and security between the network and distribution sides of the termination panel.

Fibertronics, Inc. offers wall mount termination boxes with one or two doors. This wall mount termination box provides a safe and clean environment for fiber optics. Various accessories help avoid any unexpected damage to the fiber.

Fiber Optic Termination Boxes are great for joining fiber optic cable and pigtails and are specifically designed for the management of fiber cables. By providing safe and secure housing they protect fiber optic splices and enable easy distribution. They are primarily used within the telecommunications industry and network equipment rooms. The terminal boxes are divided into a wall-mounting type, a fixed (rack-mounting) and a flexible (drawing-out, pushing into) type terminal boxes.

 **Please Note: Mounting hardware is not included

If you have any questions about our various indoor wall mount boxes, please reach out to one of our specialists, which you can find on our Contact page.





Wall Mount Patch Panel Features & Specifications

  • 2 LGX Adapter Panels
  • 2 Slack Spools
  • Compact
  • High Density
  • Powder Coated
  • 2 Outer Doors
  • Network Side Door is Key Locked
  • Distribution Side Door with Padlock Option (Padlock not included)

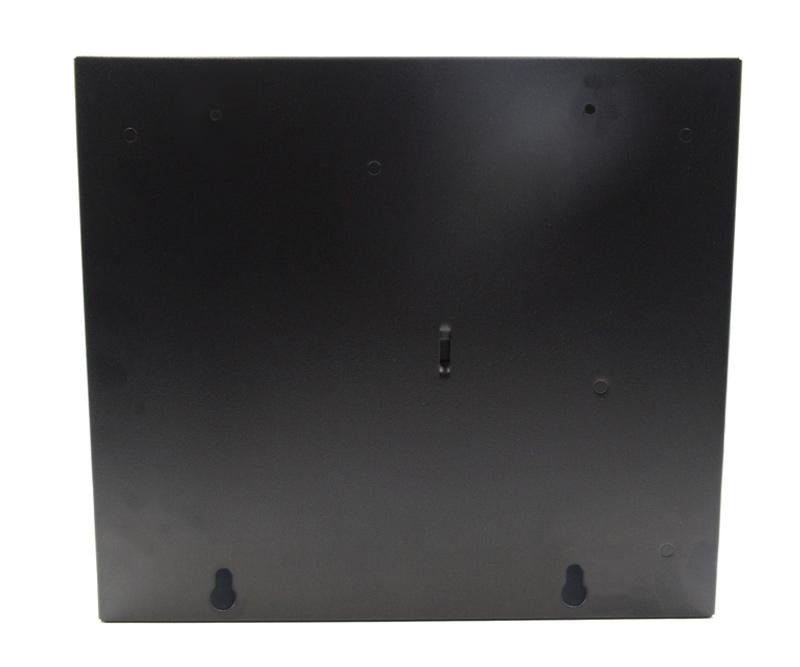

  • Screw Holes on the Rear Panel
  • Material: 16 Gauge Powder Coated Steel
  • Height: 268mm (10.5")
  • Width: 318mm (12.5")
  • Depth: 93mm (4.0")
  • Weight: 3.33kg (7.34lbs)

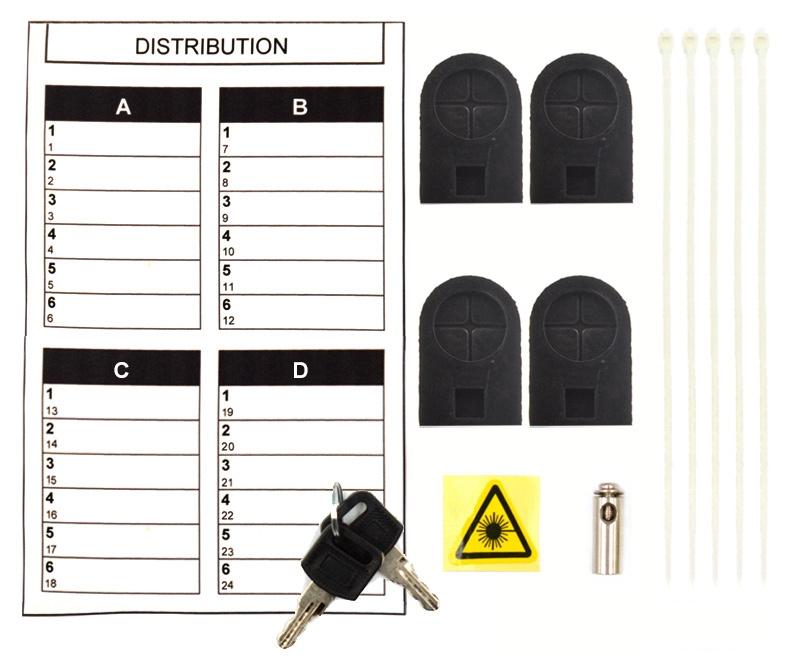

Wall Mount Patch Panel Accessories

  • Keys: 2
  • Cable Ties: 5
  • Grommets: 4
  • Laser Warning Labels: 1
  • Location Label: 1
  • Grounding Screw: 1

The WTB-FWM-6202 is a high-density wall-mount fiber optic enclosure. It offers an easy point of convergence for splicing and connecting in wall mount applications. The unit has 2 adapter panel positions allowing for a wide range of fiber termination connector types. It is equipped with a set of keys that allow access to the network side of the panel. If required a padlock can be added to the outer door which allows access to the distribution side, maintaining separation and security between the network and distribution sides of the termination panel.

Fibertronics, Inc. offers wall mount termination boxes with one or two doors. This wall mount termination box provides a safe and clean environment for fiber optics. Various accessories help avoid any unexpected damage to the fiber.

Fiber Optic Termination Boxes are great for joining fiber optic cable and pigtails and are specifically designed for the management of fiber cables. By providing safe and secure housing they protect fiber optic splices and enable easy distribution. They are primarily used within the telecommunications industry and network equipment rooms. The terminal boxes are divided into a wall-mounting type, a fixed (rack-mounting) and a flexible (drawing-out, pushing into) type terminal boxes.

 **Please Note: Mounting hardware is not included

If you have any questions about our various indoor wall mount boxes, please reach out to one of our specialists, which you can find on our Contact page.





Wall Mount Patch Panel Features & Specifications

  • 2 LGX Adapter Panels
  • 2 Slack Spools
  • Compact
  • High Density
  • Powder Coated
  • 2 Outer Doors
  • Network Side Door is Key Locked
  • Distribution Side Door with Padlock Option (Padlock not included)
  • Screw Holes on the Rear Panel
  • Material: 16 Gauge Powder Coated Steel
  • Height: 268mm (10.5")
  • Width: 318mm (12.5")
  • Depth: 93mm (4.0")
  • Weight: 3.33kg (7.34lbs)





Wall Mount Patch Panel Accessories

  • Keys: 2
  • Cable Ties: 5
  • Grommets: 4
  • Laser Warning Labels: 1
  • Location Label: 1
  • Grounding Screw: 1
Products specifications
Attribute nameAttribute value
Adapter Capacity02 LGX Adapter Panels
Ports4 Port 'U' Style - 38mm x 53mm (1.49" x 2.08")
LockableYes
TypeDouble Doors
Material16 Gauge Powder Coated Steel
Height268mm (10.5")
Width318mm (12.5")
Depth93mm (4.0")
Weight3.33kg (7.34lbs)
ColorBlack
