4 LGX, Wall Mount Patch Panel with 2 Doors

A Lockable, Fiber Optic Wall Mount Patch Panel with 2 Doors
Item No: WTB-FWM-6004
11 In Stock
Manufacturer: Fibertronics
$98.95

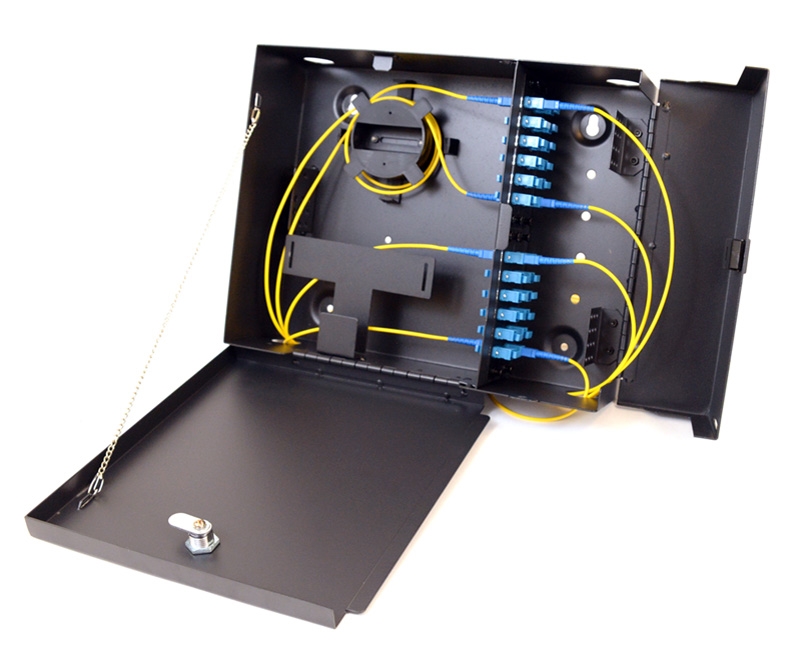

The WTB-FWM-6004 is a high density wall-mount fiber optic enclosure designed to support patching and splicing in one unit. The unit has 4 adapter panel positions allowing for a wide range of fiber termination connector types. It is equipped with a set of keys that allow access to the network side of the panel. If required a padlock can be added to the disribution side, maintaining seperation and security between the network and distribution sides of the termination panel.





Product Features

  • 4 LGX Adapter Panels
  • 2 Slack Spools
  • High Density
  • Powder Coated
  • 2 Outer Doors
  • Network Side Door is Key Locked
  • Distribution Side Door with Padlock Option (Padlock not included)
  • Screw Holes on the Rear Panel

The WTB-FWM-6004 is a high density wall-mount fiber optic enclosure designed to support patching and splicing in one unit. The unit has 4 adapter panel positions allowing for a wide range of fiber termination connector types. It is equipped with a set of keys that allow access to the network side of the panel. If required a padlock can be added to the disribution side, maintaining seperation and security between the network and distribution sides of the termination panel.





Product Features

  • 4 LGX Adapter Panels
  • 2 Slack Spools
  • High Density
  • Powder Coated
  • 2 Outer Doors
  • Network Side Door is Key Locked
  • Distribution Side Door with Padlock Option (Padlock not included)
  • Screw Holes on the Rear Panel
Products specifications
Adapter Capacity 04 LGX Adapter Panels
Ports 4 Port - Ø25mm (0.98")
Splice Trays Supports 1
Supported Splice Trays TRAY-X1,TRAY-X2, TRAY-X3, TRAY-X4, FT-TRAY12, FT-TRAY12AL, FT-TRAY24, FT-SET12
Lockable Yes
Type Double Doors
Material 16 Gauge Powder Coated Steel
Height 289mm
Width 362mm
Depth 106mm
Weight 4.94kg (10.89lbs)
Color Black

This enclosure is shipped with an accessory pack that includes the following:

  • 2 x Keys
  • 5 x Cable Ties
  • 4 x Grommets
  • 4 x Cable Management Rings
  • 1 x Laser Warning Label
  • 1 x Location Label
  • 1 x Grounding Screw

Please Note: Mounting hardware is not included.

Looking for more information?

You're in the right place. Simply download the datasheet to help you make the right product choice.






Download Datasheet

Frequently Asked Questions

Below are some of the more Frequently Asked Questions that we recieve. If you can't find an answer to your particular question you can always get in touch with us here.






Q: Are these in stock?

A: Yes, we currently have stock of this product.


Q: Are adapter plates included?

A: No, you can however purchase them separately here.


Q: Are splice trays included

A: Please refer to the product specifications.


Q: Is mounting hardware included?

A: No, there is no mounting hardware included with this patch panel.

Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Adapter Capacity 04 LGX Adapter Panels
Ports 4 Port - Ø25mm (0.98")
Splice Trays Supports 1
Supported Splice Trays TRAY-X1,TRAY-X2, TRAY-X3, TRAY-X4, FT-TRAY12, FT-TRAY12AL, FT-TRAY24, FT-SET12
Lockable Yes
Type Double Doors
Material 16 Gauge Powder Coated Steel
Height 289mm
Width 362mm
Depth 106mm
Weight 4.94kg (10.89lbs)
Color Black
