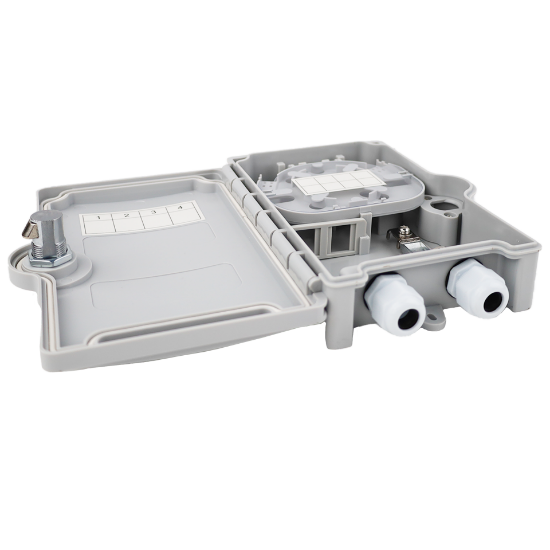

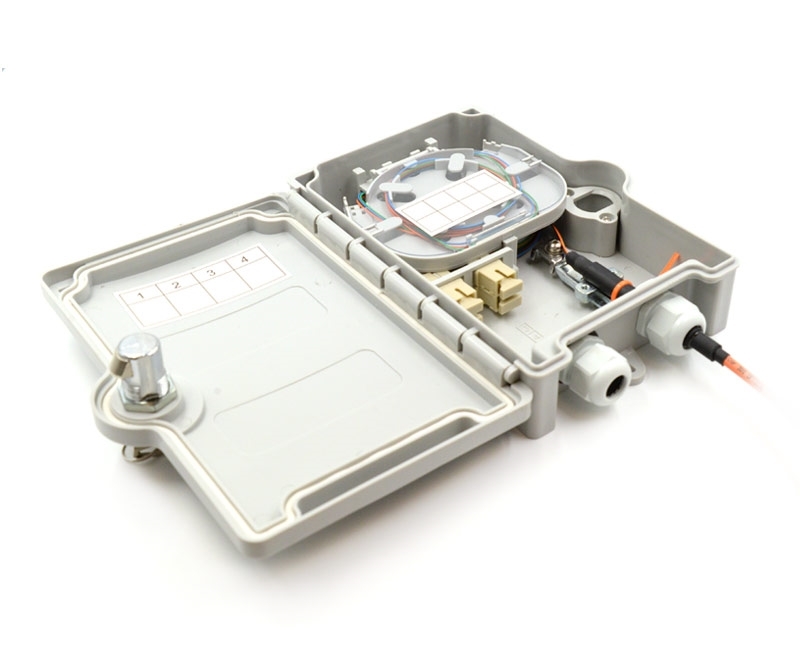

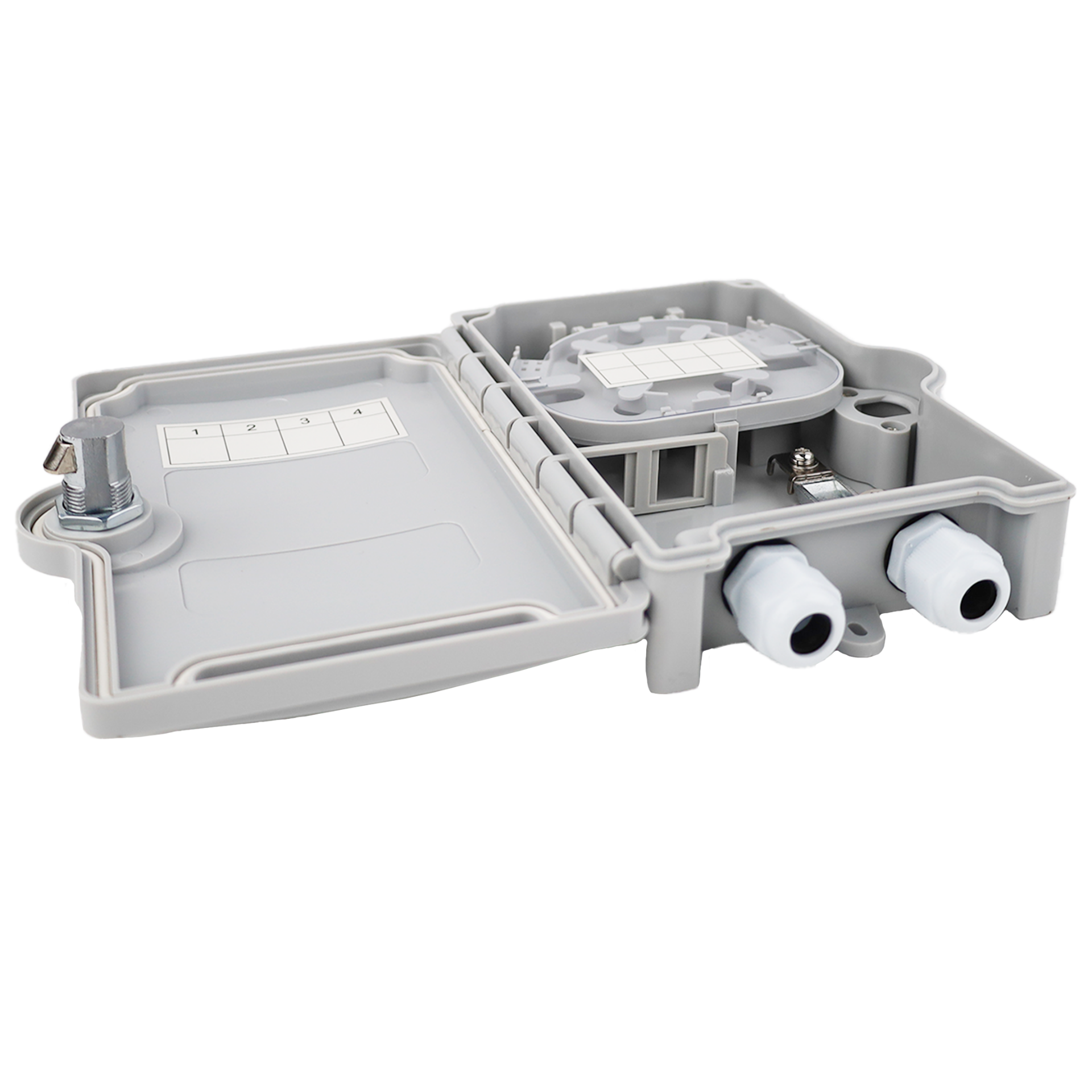

4 Fiber Wall Mountable Termination Box - 2 Input Glands - Splice Tray Included

4 Fiber Wall Mountable Termination Box - 2 Input Glands - Splice Tray Included - Accepts x4 SC Simplex/LC Duplex Adapters (not included)
Item No: FOTB-C01
MFG Part#: FOTB-C01
Manufacturer: Fibertronics, Inc.
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$25.50

Wall Mount Fiber Optic Termination Boxes are great for joining fiber optic cable and pigtails. By providing a safe and secure housing they protect fiber optic splices and enable easy distribution. They are primarily used within the telecommunications industry and network equipment rooms.

In FTTH applications, a termination box is a distribution box specially designed for the management of fiber cables. Its core use is to terminate fiber optic cables and connect the cable’s core and pigtail. The typical termination box consists of three parts, the fiber connector protection element, the internal components, and the housing. Its internal components are typically encapsulated in an IP-rated housing made of impact-resistant and sturdy materials that can protect against damage caused during operation and placement. Fixtures, fixed fiber trays and the support frame are part of the internal components of a fiber termination box. The main component in the internal structure is this supporting frame. To maintain the fibers in an orderly manner. To perform outdoors for a prolonged period, components of the fiber termination box should be dustproof and have good corrosion resistance. Its housing should be easy to open and have provisions for a lock to prevent potential tapping.

In general, the fiber termination box shall be used for agricultural telephone networks, data, and image transmission systems as well as CATV cable TV series. For a variety of fiber optic systems in which optical cables, patch cores and pigtails are interconnected, fiber termination boxes may be used for distribution and termination. In addition, a fiber termination box may be used for joint fiber pigtails and to protect fiber optic splices.



4 Fiber Wall Mountable Termination Box Features

  • The housing is made of high strenght polycarbonate plastic which provides mechanical strength and insures long-lasting reliability.
  • Protection Class IP55
  • Easy installation
  • Simple maintenence

Wall Mount Fiber Optic Termination Boxes are great for joining fiber optic cable and pigtails. By providing a safe and secure housing they protect fiber optic splices and enable easy distribution. They are primarily used within the telecommunications industry and network equipment rooms.

In FTTH applications, a termination box is a distribution box specially designed for the management of fiber cables. Its core use is to terminate fiber optic cables and connect the cable’s core and pigtail. The typical termination box consists of three parts, the fiber connector protection element, the internal components, and the housing. Its internal components are typically encapsulated in an IP-rated housing made of impact-resistant and sturdy materials that can protect against damage caused during operation and placement. Fixtures, fixed fiber trays and the support frame are part of the internal components of a fiber termination box. The main component in the internal structure is this supporting frame. To maintain the fibers in an orderly manner. To perform outdoors for a prolonged period, components of the fiber termination box should be dustproof and have good corrosion resistance. Its housing should be easy to open and have provisions for a lock to prevent potential tapping.

In general, the fiber termination box shall be used for agricultural telephone networks, data, and image transmission systems as well as CATV cable TV series. For a variety of fiber optic systems in which optical cables, patch cores and pigtails are interconnected, fiber termination boxes may be used for distribution and termination. In addition, a fiber termination box may be used for joint fiber pigtails and to protect fiber optic splices.



4 Fiber Wall Mountable Termination Box Features

  • The housing is made of high strenght polycarbonate plastic which provides mechanical strength and insures long-lasting reliability.
  • Protection Class IP55
  • Easy installation
  • Simple maintenence
Products specifications
Attribute nameAttribute value
Adapter Capacity04 Adapters
Splice Trays01 Splice Tray
Splice Capacity04 Splices
Ports2 Cable Gland Input Ports Ø6mm (0.23") ~ Ø12mm (0.47")
MaterialPolycarbonate Plastic
Height207mm (8.14")
Width152mm (5.98")
Depth51.7mm (2.03")
ColorGray
