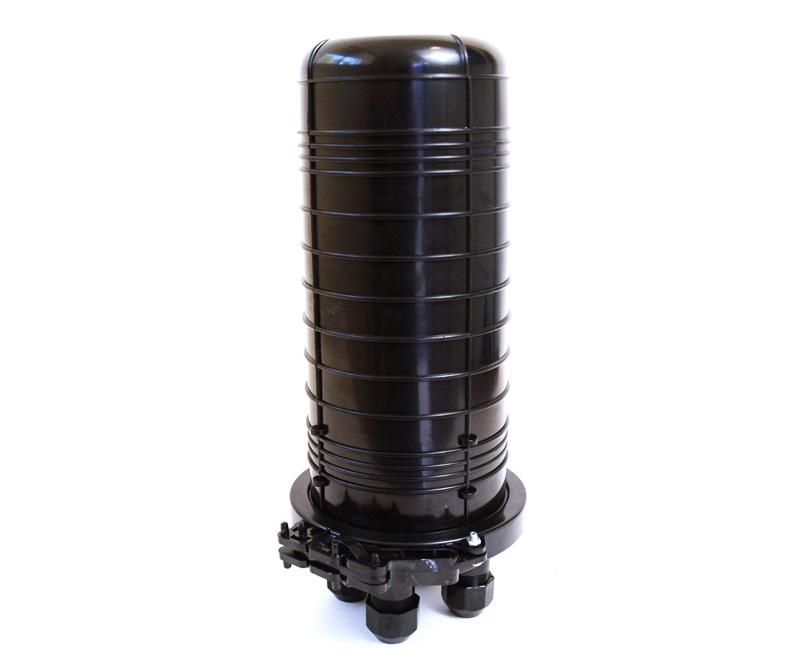

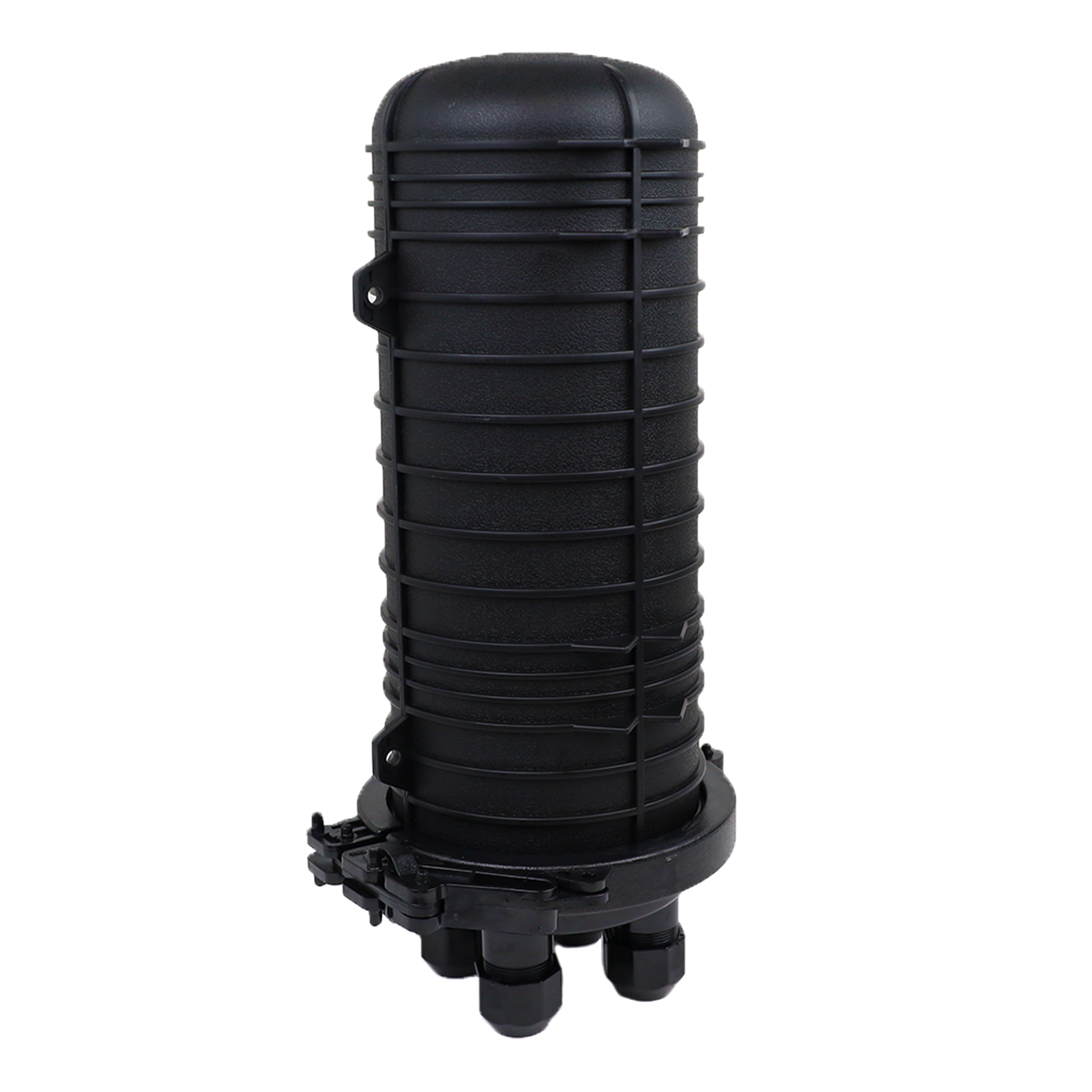

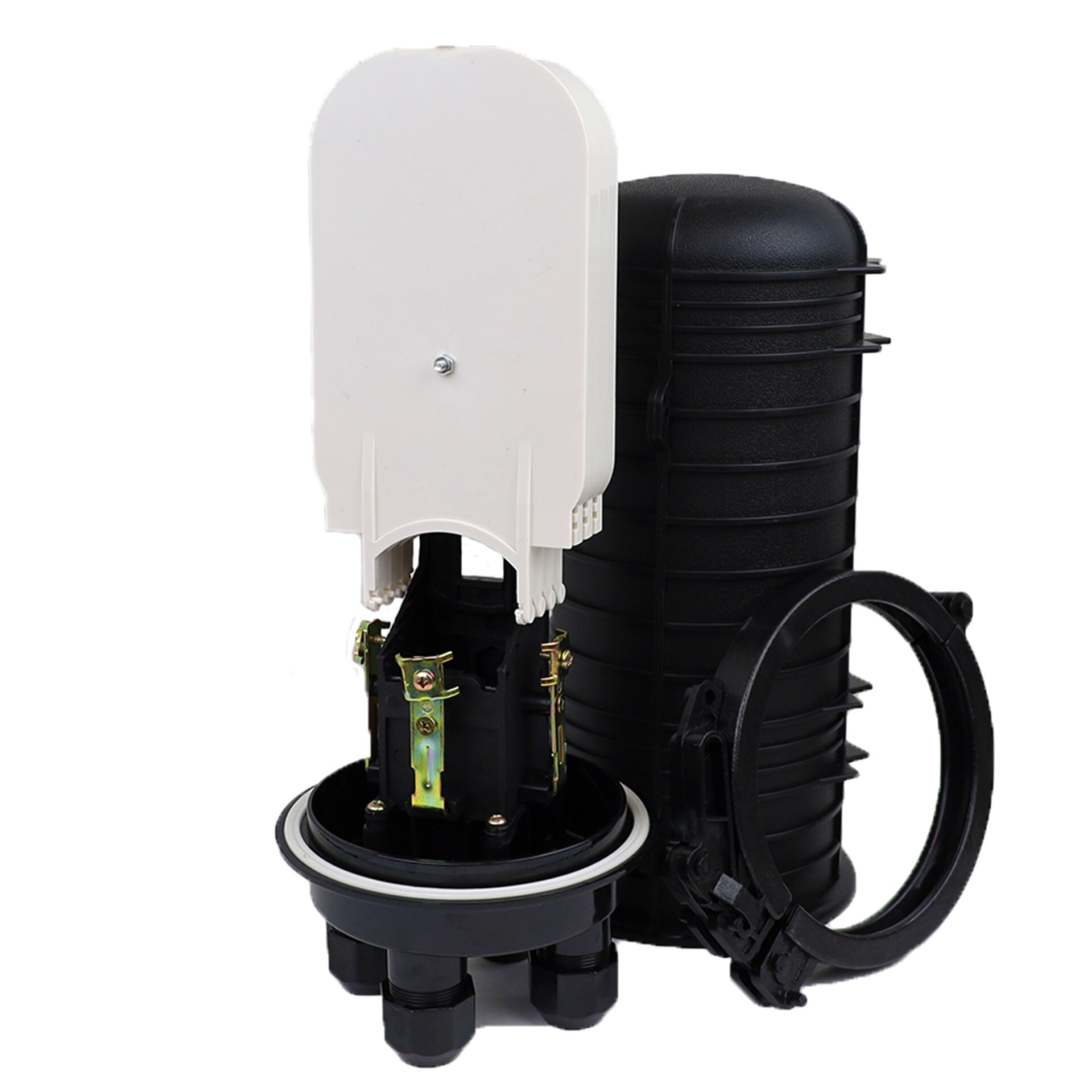

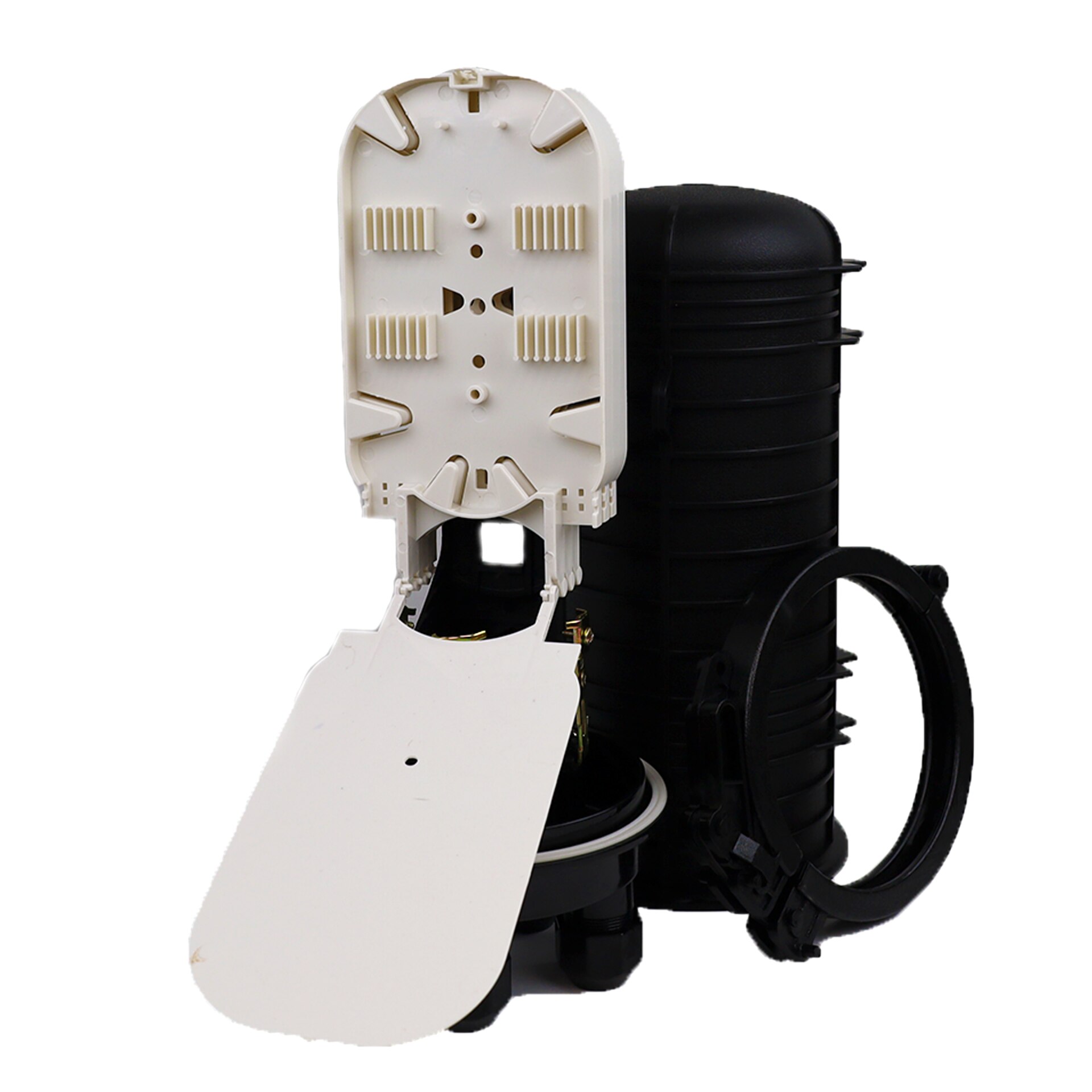

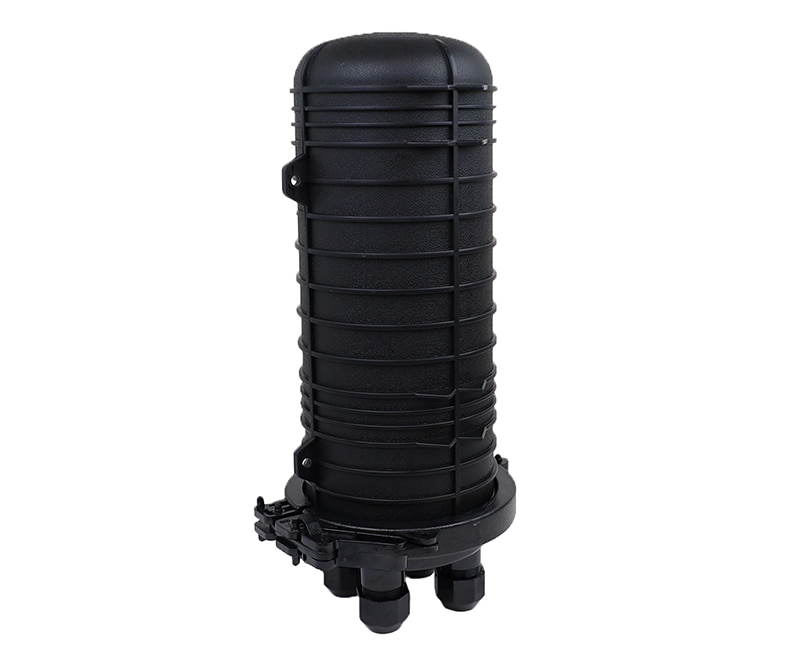

Vertical Splice Enclosures (often called Dome Types) are designed to protect fiber optic cable splicing and joints. They feature a seal that makes them both dust and weather resistant, this means that they are ideal for outdoor use. They are designed to be used in underground applications and temperatures ranging from -40°C to 65°C. They are widely used in CATV, telecommunications and fiber optic networks. Setup and installation are easy. The dome shape makes it easy to be buried in many applications, though it also can be used above-ground as well.
A vertical splice enclosure is a device designed for space and protection of fiber optic cables is used to assemble them. Whether in an external plant or inside a building, the fiber cable closure will connect and store optical fibers safely. The fact that it has excellent mechanical strength as well as a robust outer shell, which guarantees the joints have not been harmed from an unfriendly environment, makes it capable of providing protection to fiber lines and fiber cables.
There are many models and configurations for vertical fiber optic splice closures due to increasing network demands. In order to meet the specific requirements of today's fiber optic networks, high-capacity versions and variations in splicing tray sizes can also be found on the market. The number of inlet/outlet ports of the dome fiber optic closure also varies with application needs. This Fiber Outdoor Splice Enclosure requires high-level seals and waterproof technology, due to their underground applications. In addition, keeping insects out and dirt contained is also of great importance when using these enclosures.
72 Fiber Outdoor Splice Enclosure Features & Specifications
- U.V and Chemical Resistant
- May be used for Cut, Uncut and Taut Sheath Applications
- Dust and Waterproof design
- Ideal for Aerial and Underground applications
- Easy setup and installation
- Material: Polycarbonate Plastic
- Width: 140mm
- Height: 410mm
