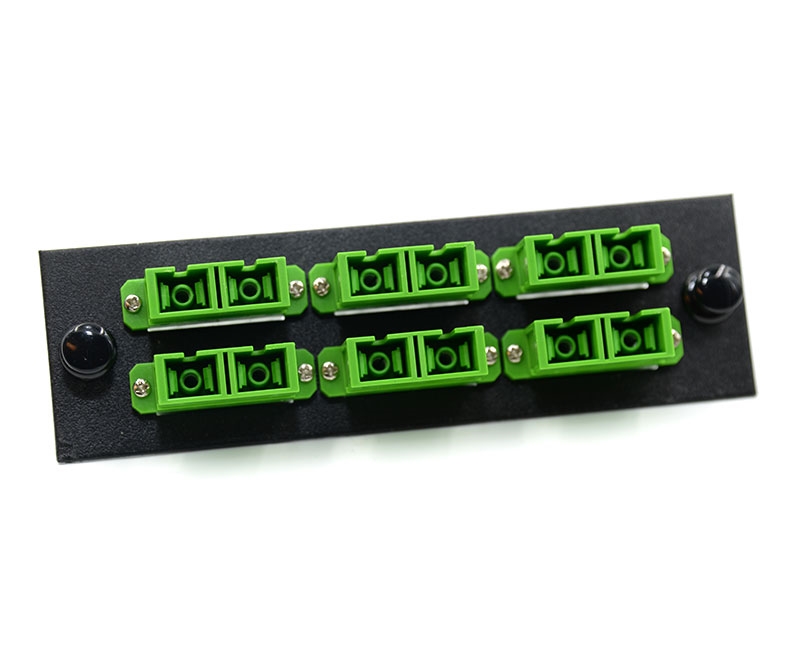

12 Fiber F-Type Adapter Plate with (x6) Duplex SC/APC Green Adapters

These in-house F-Type fiber optic patch panel adapter plates are an older design and are for use within our very own F-Type patch panels. The 'F' in F-Type adapter plates stands for Fibertronics, Inc. They are available in SC, ST, LC, FC, SC/APC, LC/APC, and FC/APC fiber optic connector options with 6, 8, 12, 16 and 24 port versions. These green F-Type adapter plates are able to fit all Corning patch panels using one of our plate adapters.

Fibertronics, Inc. F-type adapter plates are designed for high density fiber applications. They are used in data centers, computer rooms and optical distribution hubs in the telecom sector. They are used only in F style patch panels. These F-Type adapter plates are not compatible with LGX style rack and wall mount boxes.

Green F-Type Adapter Plate Features & Specifications

• F-Type footprint with our standard 12.06cm (4.75") pin spacing
• Dimensions: 13.48cm (5.31") x 3.96cm (1.56")
• Coating: Black Matte Powder Coat Finish
• All metal construction
• The F-Type adapter plate is interchangeable allowing for use in a wide range of products
• Installation is made easy with Push/Pull Pins
• Connectors are screwed in to prevent rattling of adapters
• RoHS compliant
• Available in multiple colors: aqua, beige, green, and blue

Our other available F-Type Adapter Plates include:

• F-Type Blank Adapter Panel – F-Type-Blank

• 12 Fiber LC/UPC – 62.5/125µm Multimode OM1
• 6 Fiber SC/UPC - 62.5/125µm Multimode OM1
• 12 Fiber SC/UPC - 62.5/125µm Multimode OM1
• 24 Fiber LC/UPC – 62.5/125µm Multimode OM1
• 6 Fiber ST/UPC - 62.5/125µm Multimode OM1
• 12 Fiber ST/UPC - 62.5/125µm Multimode OM1
• 6 Fiber FC/UPC - 62.5/125µm Multimode OM1
• 12 Fiber FC/UPC - 62.5/125µm Multimode OM1

• 12 Fiber LC/UPC - 50/125µm Multimode OM3
• 24 Fiber LC/UPC - 50/125µm Multimode OM3
• 6 Fiber SC/UPC - 50/125µm Multimode OM3
• 12 Fiber SC/UPC - 50/125µm Multimode OM3
• 6 Fiber ST/UPC - 50/125µm Multimode OM3
• 12 Fiber ST/UPC - 50/125µm Multimode OM3
• 6 Fiber FC/UPC - 50/125µm Multimode OM3
• 12 Fiber FC/UPC - 50/125µm Multimode OM3

• 12 Fiber LC/UPC and LC/APC – 9/125µm Singlemode OS2
• 24 Fiber LC/UPC and LC/APC – 9/125µm Singlemode OS2
• 6 Fiber SC/UPC and SC/APC – 9/125µm Singlemode OS2
• 12 Fiber SC/UPC and SC/APC – 9/125µm Singlemode OS2
• 6 Fiber ST/UPC – 9/125µm Singlemode OS2
• 12 Fiber ST/UPC – 9/125µm Singlemode OS2
• 6 Fiber FC/UPC and FC/APC – 9/125µm Singlemode OS2
• 12 Fiber FC/UPC and FC/APC – 9/125µm Singlemode OS2
