This SC No Epoxy Pre-Polished Mechanical Connector is perfect for quick field termination. Requiring very little time and minimal training, this connector is optimal for the field technician with any level of experience.
When two or more optical fibers are joined mechanically, they are precisely aligned and secured in place by a mechanical connector. It should be highlighted that mechanically spliced fibers are carefully maintained together so that light can travel from one fiber to the other; they are not permanently linked. To eliminate the need for hand polishing, bonding or epoxy in the field, the mechanical connector must be pre polished and field installed. Mechanical connectors are ideal for use in premise environments, patch panels and where rapid repair or replacement is a requirement as well as data centers and applications which require quick network installation. Mechanical connectors are typically used when time and professional abilities are restricted because the entire operation is very quick and simple.
Listed below are the simple steps for a quick field termination using our Pre-Polished Mechanical Connector.
Quick Field Termination Guide

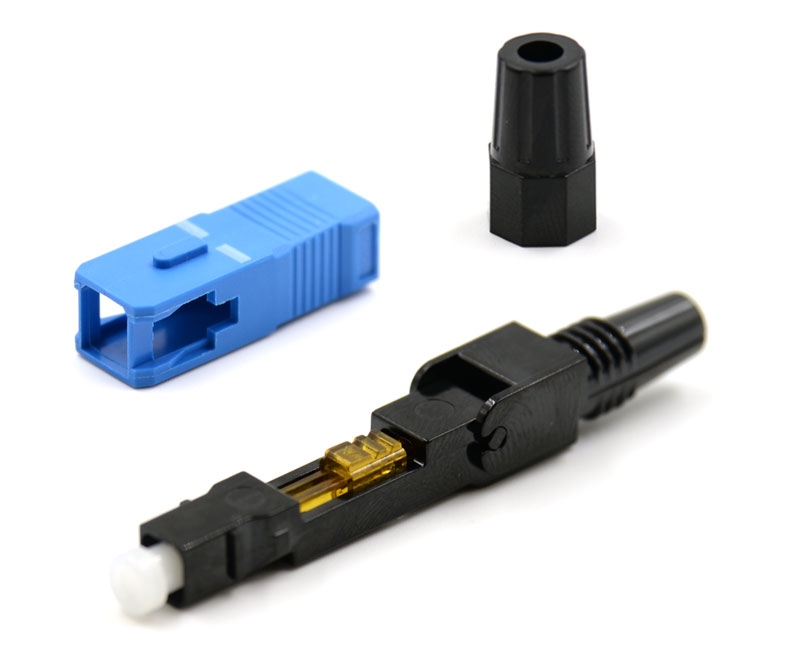

- Gather the required materials, these include Housing, Fiber Connecting Holder, Boot Cover, and Screw Cap
- Place Screw Cap over the end of your fiber optic cable.
- Strip approximately 40mm of the outer coating from the end of fiber optic cable.
- Strip approximately 20mm of the inner coating from the fiber itself.
- Using a fiber optic cleaver, cleave 10mm of fiber.
- Insert the cable into the Fiber Connecting Holder until it begins to bend.
- While holding the cable steady, push the Connecting Holder to the end and fix the fiber.
- Close the Boot Cover and remove the excess strength yarn. Screw on the Screw Cap on to the end of the connector.
- Unite the Housing with the body.
