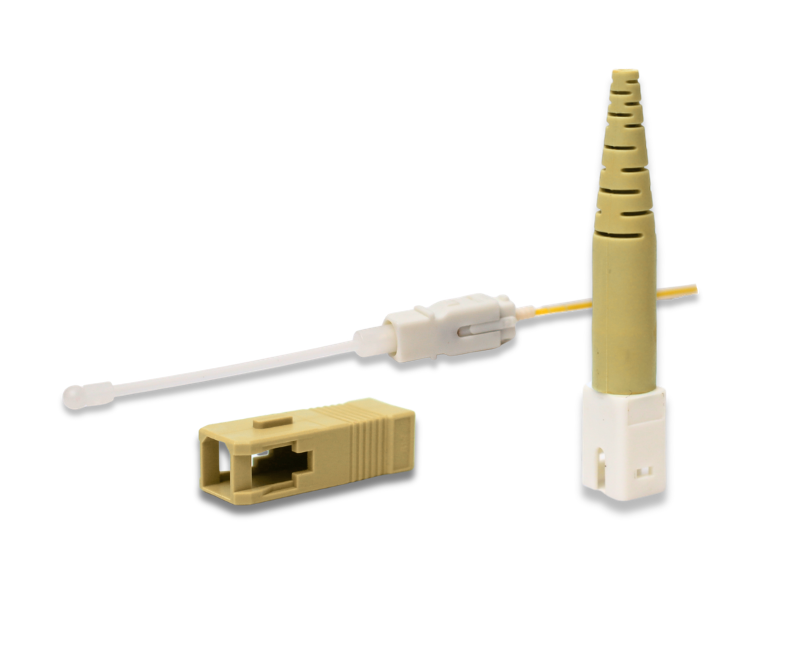

SC Multimode OM4 900μm Splice On Connector

Item No: SC-OM4-UPC-09
MFG Part#: SC-OM4-UPC-09
Manufacturer: Fibertronics
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$9.86

The weak point of other fusion splice-on connectors occurs when the shock absorber of the stop ring is sleeved by heat shrink after fusion splicing. Typically, if the ferrule fiber, primary fiber, and the ferrule take a load toward the primary fiber, the fiber can be bent as shown in the diagrams below – possibly causing a disconnection of the fiber. To resolve this problem, the Fibertronics fiber optic splice-on connectors, such as the SC Splice-On Connector, use the ferrule to disperse this transformation and prevent fiber optic disconnect.





Product Features

  • In accordance with IEC61754-4, KS C6974(F04), JIS C5973(F04)
  • Telcordia GR-326-core certificated (Mar. 2012)
  • Possible to directly splice with drop cable & indoor cable
  • Splice point is inside of connector, no need for extra splice fixtures
  • Enhanced high quality with improved optical features (Insertion Loss & Return Loss)
  • Enhanced & improved high tensile strength (exceeding 60N)
  • Four parts can easily be assembled after splicing by one-touch push-pull system (optionally tighten a screw)
  • Satisfy Vertical Burning test, materials compliant with UL94V-0






Applications

  • Medium and long range optical transmission circuit, LAN, CATV, FA, OA
  • PC transmission system, measuring tools
  • FTTx Network

The weak point of other fusion splice-on connectors occurs when the shock absorber of the stop ring is sleeved by heat shrink after fusion splicing. Typically, if the ferrule fiber, primary fiber, and the ferrule take a load toward the primary fiber, the fiber can be bent as shown in the diagrams below – possibly causing a disconnection of the fiber. To resolve this problem, the Fibertronics fiber optic splice-on connectors, such as the SC Splice-On Connector, use the ferrule to disperse this transformation and prevent fiber optic disconnect.





Product Features

  • In accordance with IEC61754-4, KS C6974(F04), JIS C5973(F04)
  • Telcordia GR-326-core certificated (Mar. 2012)
  • Possible to directly splice with drop cable & indoor cable
  • Splice point is inside of connector, no need for extra splice fixtures
  • Enhanced high quality with improved optical features (Insertion Loss & Return Loss)
  • Enhanced & improved high tensile strength (exceeding 60N)
  • Four parts can easily be assembled after splicing by one-touch push-pull system (optionally tighten a screw)
  • Satisfy Vertical Burning test, materials compliant with UL94V-0






Applications

  • Medium and long range optical transmission circuit, LAN, CATV, FA, OA
  • PC transmission system, measuring tools
  • FTTx Network
Products specifications
Attribute nameAttribute value
ConnectorSC/UPC
ModeMultimode, OM4, 50/125
Size900μm
TypeSimplex
Return Loss (dB) Min>30dB
Insertion Loss (dB) MaxAverage <.20dB (Max < .30dB)
