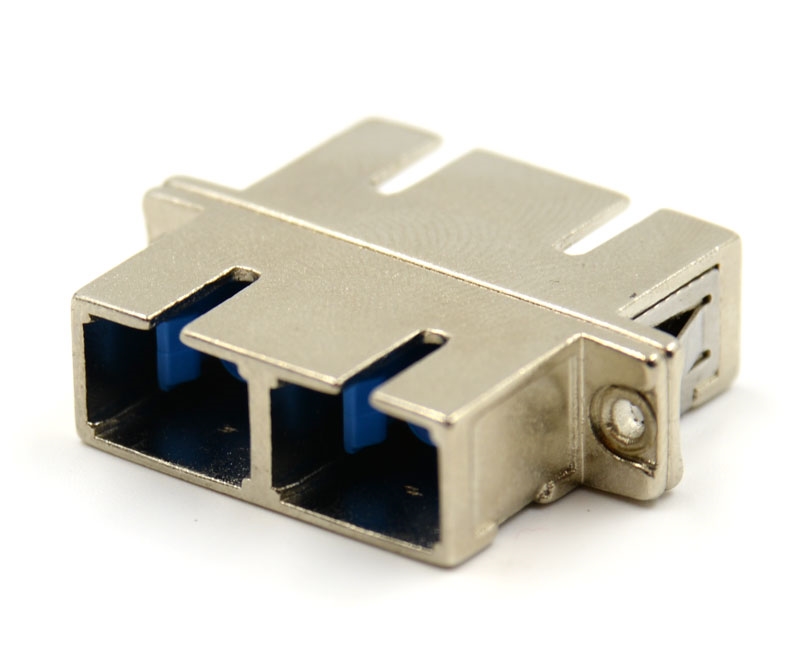

SC Duplex Metal Adapter with Flange

Fibertronics, Inc. offers a variety of high-quality SC duplex metal adapters, also known as SC mating sleeves. These are bulkhead adapters that mount into patch panels and adapter plates. This SC adapter has flange which offer additional stability by screw-mounting.

SC duplex adapters allow you to mate two duplex SC cables while maintaining precise SC duplex alignment. Our SC duplex adapters fit standard duplex SC cutouts for patch panels, cassettes, adapter plates and more. These adapters are the standard wherever SCs are used in space-saving, priority situations, such as in 12 fiber SC cassettes and other rack-mounted options.

At Fibertonics, Inc. we offer two variations of SC metal adapters, simplex and duplex. Simplex adapters are designed to fit a standard SC simplex footprint and duplex adapters are designed to fit a standard SC duplex footprint. They are suitable for singlemode or multimode, UPC or APC.

These adapters are the standard wherever SCs are used in space-saving priority situations, such as in 12 fiber SC cassettes and other rack-mounted options. The metal body provides a great durable solution, and the integrated mounting clip allows for easy snap-in installation. Each fiber port uses a ceramic alignment sleeve for precision mating with no excess signal loss. Adapters ship with standard plug-style dust caps.

 If you have any inquiries about SC duplex metal fiber optic adapters, please reach out using the Contact Us portion of the website.

SC Duplex Metal Adapter with Flange Features & Specifications

• High quality and durable Ni-Plated Brass body
• Typical insertion loss under 0.05dB and maximum of 0.2dB
• Adapters ship with standard colored plug-style dust caps
• Fast and easy connection
• SC Metal Duplex Adapters fit a standard SC Duplex footprint
• Durable metal body construction
• Integrated mounting clip allows for easy snap-in installation
• Ceramic alignment sleeve for precision mating
• Reduced signal loss
