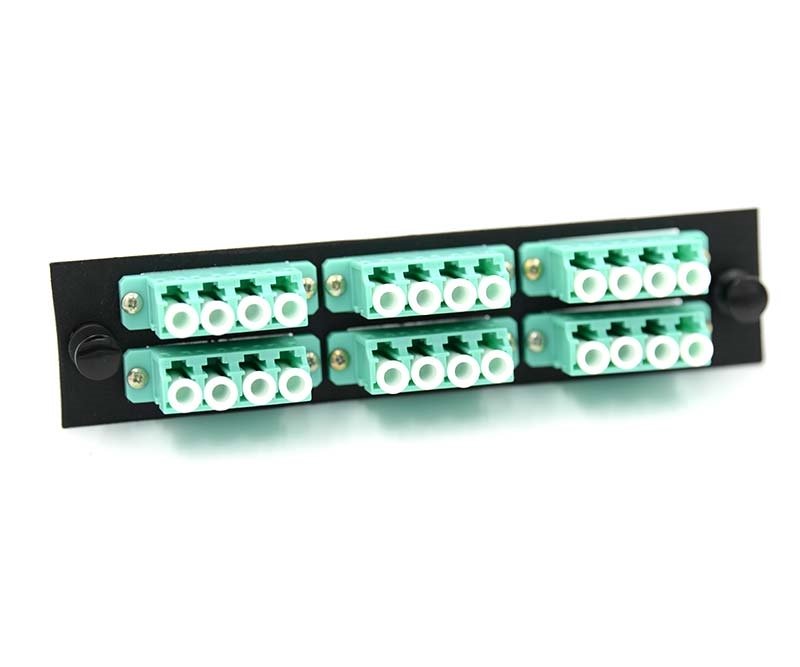

24 Fiber F-Type Adapter Plate with (x6) Quad LC/UPC Adapters

24 Fiber F-Type Adapter Plate with (x6) Quad LC/UPC Adapters
Item No: FT-DLC24LMXBLK
MFG Part#: FT-DLC24LMXBLK
Manufacturer: Fibertronics, Inc.
*
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$45.00

These in-house F-Type fiber optic patch panel adapter plates are an older design and are for use within our very own F-Type patch panels. The 'F' in F-Type adapter plates stands for Fibertronics, Inc. They are available in SC, ST, LC, FC, SC/APC, LC/APC, and FC/APC fiber optic connector options with 6, 8, 12, 16 and 24 port versions. These aqua F-Type adapter plates are able to fit all Corning patch panels using one of our plate adapters.

Fibertronics, Inc. F-type adapter plates are designed for high density fiber applications. They are used in data centers, computer rooms and optical distribution hubs in the telecom sector. They are used only in F style patch panels. These F-Type adapter plates are not compatible with LGX style rack and wall mount boxes.





F-Type Adapter Plate Features & Specifications

  • F-Type footprint with our standard 12.06cm (4.75") pin spacing
  • Dimensions: 13.48cm (5.31") x 3.96cm (1.56")
  • Coating: Black Matte Powder Coat Finish
  • All metal construction
  • The F-Type adapter plate is interchangeable allowing for use in a wide range of products
  • Installation is made easy with Push/Pull Pins
  • Connectors are screwed in to prevent rattling of adapters
  • RoHS compliant
  • Available in multiple colors: aqua, beige, green, and blue



Standard Color Codes

Blue: Singlemode OS2 UPC
Green: Singlemode OS2 APC
Beige: Multimode OM1 and OM2 UPC
Aqua: Multimode OM3 and OM4 UPC
Magenta: Multimode OM5 UPC






Our other available F-Type Adapter Plates include:

  • F-Type Blank Adapter Panel – F-Type-Blank
  • 12 Fiber LC/UPC – 62.5/125µm Multimode OM1
  • 6 Fiber SC/UPC - 62.5/125µm Multimode OM1
  • 12 Fiber SC/UPC - 62.5/125µm Multimode OM1
  • 24 Fiber LC/UPC – 62.5/125µm Multimode OM1
  • 6 Fiber ST/UPC - 62.5/125µm Multimode OM1
  • 12 Fiber ST/UPC - 62.5/125µm Multimode OM1
  • 6 Fiber FC/UPC - 62.5/125µm Multimode OM1
  • 12 Fiber FC/UPC - 62.5/125µm Multimode OM1
  • 12 Fiber LC/UPC - 50/125µm Multimode OM3
  • 24 Fiber LC/UPC - 50/125µm Multimode OM3
  • 6 Fiber SC/UPC - 50/125µm Multimode OM3
  • 12 Fiber SC/UPC - 50/125µm Multimode OM3
  • 6 Fiber ST/UPC - 50/125µm Multimode OM3
  • 12 Fiber ST/UPC - 50/125µm Multimode OM3
  • 6 Fiber FC/UPC - 50/125µm Multimode OM3
  • 12 Fiber FC/UPC - 50/125µm Multimode OM3
  • 12 Fiber LC/UPC and LC/APC – 9/125µm Singlemode OS2
  • 24 Fiber LC/UPC and LC/APC – 9/125µm Singlemode OS2
  • 6 Fiber SC/UPC and SC/APC – 9/125µm Singlemode OS2
  • 12 Fiber SC/UPC and SC/APC – 9/125µm Singlemode OS2
  • 6 Fiber ST/UPC – 9/125µm Singlemode OS2
  • 12 Fiber ST/UPC – 9/125µm Singlemode OS2
  • 6 Fiber FC/UPC and FC/APC – 9/125µm Singlemode OS2
  • 12 Fiber FC/UPC and FC/APC – 9/125µm Singlemode OS2

These in-house F-Type fiber optic patch panel adapter plates are an older design and are for use within our very own F-Type patch panels. The 'F' in F-Type adapter plates stands for Fibertronics, Inc. They are available in SC, ST, LC, FC, SC/APC, LC/APC, and FC/APC fiber optic connector options with 6, 8, 12, 16 and 24 port versions. These aqua F-Type adapter plates are able to fit all Corning patch panels using one of our plate adapters.

Fibertronics, Inc. F-type adapter plates are designed for high density fiber applications. They are used in data centers, computer rooms and optical distribution hubs in the telecom sector. They are used only in F style patch panels. These F-Type adapter plates are not compatible with LGX style rack and wall mount boxes.





F-Type Adapter Plate Features & Specifications

  • F-Type footprint with our standard 12.06cm (4.75") pin spacing
  • Dimensions: 13.48cm (5.31") x 3.96cm (1.56")
  • Coating: Black Matte Powder Coat Finish
  • All metal construction
  • The F-Type adapter plate is interchangeable allowing for use in a wide range of products
  • Installation is made easy with Push/Pull Pins
  • Connectors are screwed in to prevent rattling of adapters
  • RoHS compliant
  • Available in multiple colors: aqua, beige, green, and blue



Standard Color Codes

Blue: Singlemode OS2 UPC
Green: Singlemode OS2 APC
Beige: Multimode OM1 and OM2 UPC
Aqua: Multimode OM3 and OM4 UPC
Magenta: Multimode OM5 UPC






Our other available F-Type Adapter Plates include:

  • F-Type Blank Adapter Panel – F-Type-Blank
  • 12 Fiber LC/UPC – 62.5/125µm Multimode OM1
  • 6 Fiber SC/UPC - 62.5/125µm Multimode OM1
  • 12 Fiber SC/UPC - 62.5/125µm Multimode OM1
  • 24 Fiber LC/UPC – 62.5/125µm Multimode OM1
  • 6 Fiber ST/UPC - 62.5/125µm Multimode OM1
  • 12 Fiber ST/UPC - 62.5/125µm Multimode OM1
  • 6 Fiber FC/UPC - 62.5/125µm Multimode OM1
  • 12 Fiber FC/UPC - 62.5/125µm Multimode OM1
  • 12 Fiber LC/UPC - 50/125µm Multimode OM3
  • 24 Fiber LC/UPC - 50/125µm Multimode OM3
  • 6 Fiber SC/UPC - 50/125µm Multimode OM3
  • 12 Fiber SC/UPC - 50/125µm Multimode OM3
  • 6 Fiber ST/UPC - 50/125µm Multimode OM3
  • 12 Fiber ST/UPC - 50/125µm Multimode OM3
  • 6 Fiber FC/UPC - 50/125µm Multimode OM3
  • 12 Fiber FC/UPC - 50/125µm Multimode OM3
  • 12 Fiber LC/UPC and LC/APC – 9/125µm Singlemode OS2
  • 24 Fiber LC/UPC and LC/APC – 9/125µm Singlemode OS2
  • 6 Fiber SC/UPC and SC/APC – 9/125µm Singlemode OS2
  • 12 Fiber SC/UPC and SC/APC – 9/125µm Singlemode OS2
  • 6 Fiber ST/UPC – 9/125µm Singlemode OS2
  • 12 Fiber ST/UPC – 9/125µm Singlemode OS2
  • 6 Fiber FC/UPC and FC/APC – 9/125µm Singlemode OS2
  • 12 Fiber FC/UPC and FC/APC – 9/125µm Singlemode OS2
Products specifications
Attribute nameAttribute value
ConnectorLC/UPC
Ports24 Ports
TypeQuad
ModeMultimode
Weight2.3oz.
