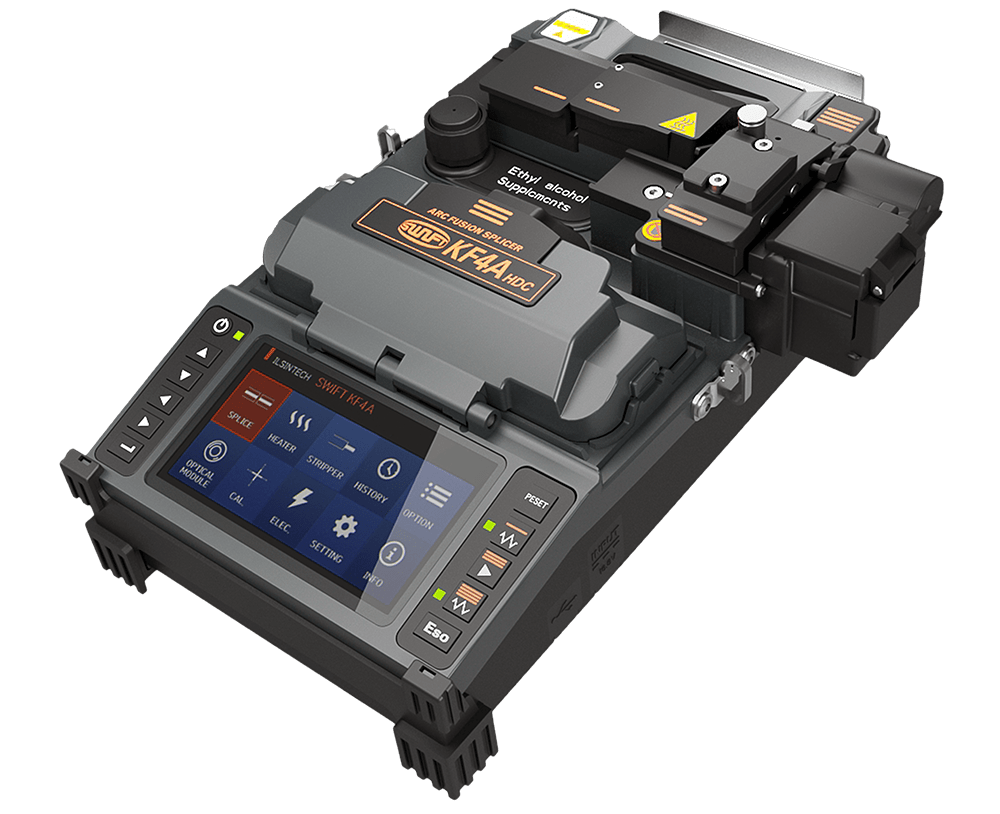

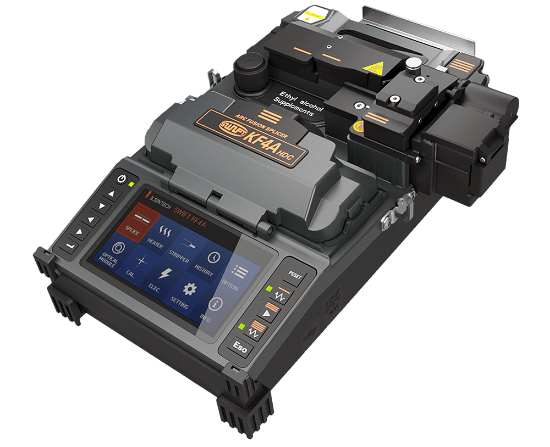

KF4A-HDC-ENT Cladding Alignment Fusion Splicer by UCLSwift

KF4A-HDC-ENT Premium V-Groove Alignment Fusion Splicer by UCLSwift
Item No: KF4A-HDC-ENT
MFG Part#: KF4A-HDC-ENT
Be the first to review this product
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$5,500.00

The new KF4A-HDC-ENT is an All-In-One, active cladding alignment fusion splicer, allowing technicians to install hardened splice-on connectors in the field. This powerful splicer equips technicians to perform the major 5 functions systematically: stripping, cleaning, cleaving, splicing and protecting; as well as installing a fully compatible OptiTap® Style hardened solution (HDCFT-01), ideal for harsh environments and FTTH applications.




Product Features

  • ROTATING BLADE LIFE UP TO 77,000 cleaves
  • ELECTRODE LIFE UP TO 38,000
  • Integrates 5 functions in one unit (stripping, cleaning, cleaving, splicing and protecting)
  • The fusion splicer with All-In-One system provides the best workability on the pole and limited work spaces
  • No scratches on fiber by thermal stripping
  • Compatible with Fusion Splice-On Connector (FSOC) in accordance with the industrial standard

The new KF4A-HDC-ENT is an All-In-One, active cladding alignment fusion splicer, allowing technicians to install hardened splice-on connectors in the field. This powerful splicer equips technicians to perform the major 5 functions systematically: stripping, cleaning, cleaving, splicing and protecting; as well as installing a fully compatible OptiTap® Style hardened solution (HDCFT-01), ideal for harsh environments and FTTH applications.




Product Features

  • ROTATING BLADE LIFE UP TO 77,000 cleaves
  • ELECTRODE LIFE UP TO 38,000
  • Integrates 5 functions in one unit (stripping, cleaning, cleaving, splicing and protecting)
  • The fusion splicer with All-In-One system provides the best workability on the pole and limited work spaces
  • No scratches on fiber by thermal stripping
  • Compatible with Fusion Splice-On Connector (FSOC) in accordance with the industrial standard
Products specifications
Attribute nameAttribute value
Fiber AlignmentIPAAS Active Cladding Alignment
Fiber Type0.25mm, 0.9mm, 2.0mm, 3.0mm cable
Fiber Count1 Fiber
Fiber DimensionsCladding Diameter: 125μm, Coating diameter: 150μm~3mm
Splicing ModesSplice Mode: 300, Heat Mode: 100
Typical Splice LossSM: 0.02dB, MM: 0.01dB, DS:0.04dB, NZDS: 0.04dB
Return Loss (dB) Min> 60dB
Splicing TimeTypical 7 sec with SM
Sleeve Heating TimeTypical 13sec with IS-60 mode, IS-60 sleeve
Storage of Splice ResultData: 5,000ea up to, Image: 5,000ea up to
Tension Test1.96N to 2.25N
Storage ConditionsTemperature: 40°F~176°F, Humidity: 0~95%
Dimensions212mm x 132mm x 73mm (without rubber protector)
Weight3.3lbs (1.5kg, including battery)
Field of View110x
Magnification220x
Power SupplyLi-ion Battery(DC 14.8V, 3400mAh), 100 ~ 240V AC charger
Number of Splice Cycles with BatteryTypically 200 Cycles
Electrode Life38,000 Splices
Blade Life77,000 Cleaves
PortsUSB
