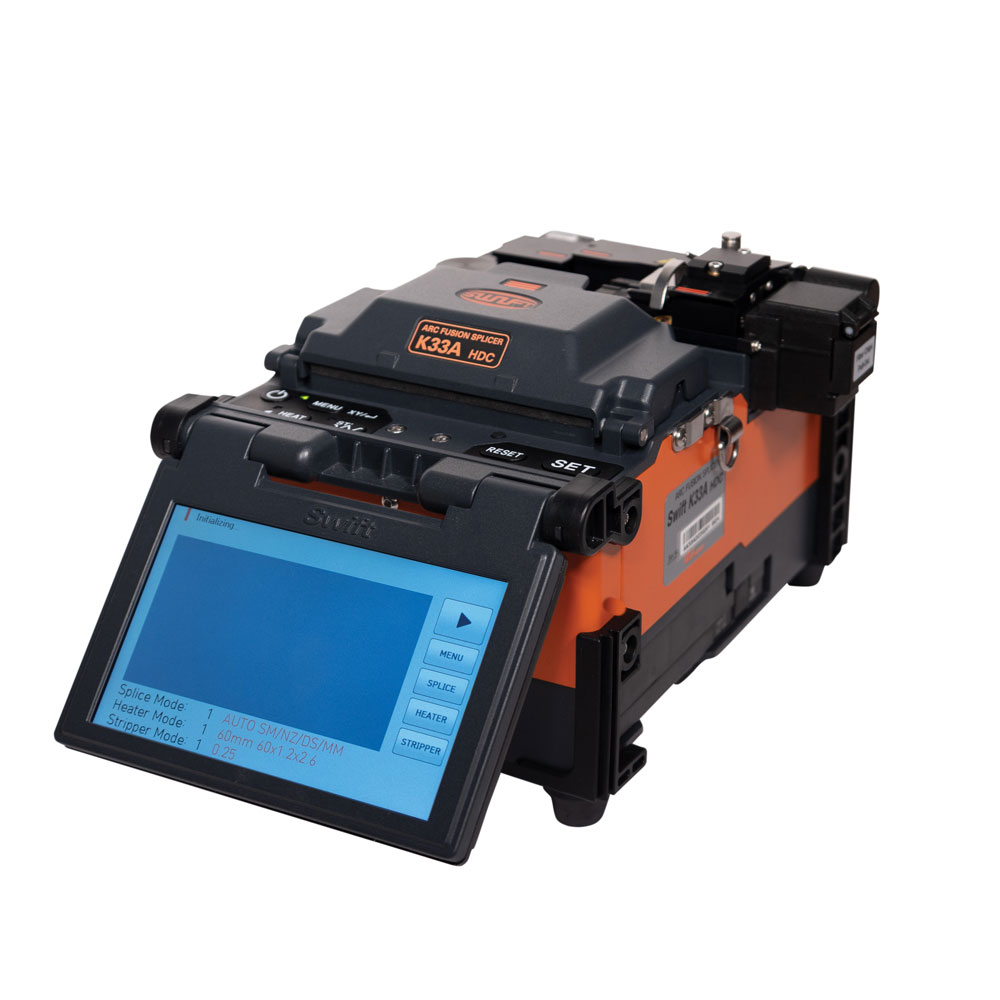

K33A-HDC-ENT Premium IPAAS All-In-One Core Alignment Fusion Splicer by UCLSwift

K33A-HDC-ENT Premium IPAAS All-In-One Core Alignment Fusion Splicer by UCLSwift
Item No: K33A-HDC-ENT
MFG Part#: K33A-HDC-ENT
Be the first to review this product
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$10,394.80

The Swift K33A-HDC is a highly advanced, All-In-One core alignment fusion splicer, designed to perform the major 5 functions systematically: stripping, cleaning, cleaving, splicing and protecting. The Swift K33A-HDC is the best fit for fusion splicing and fusion splice-on connectors (SOC) of FTTx network applications. It eliminates fatal issues common with conventional mechanical connectors including low quality, weak durability and high maintenance costs. The Swift K33A-HDC fusion splicer coupled with our fusion splice-on connectors provides customers the best ROI.







Product Features

  • ROTATING BLADE LIFE UP TO 77,000 cleaves
  • ELECTRODE LIFE UP TO 18,000
  • Remote maintenance via internet
  • The fusion splicer with All-in-One system provides the best workability with integrated 5 functions in one unit (stripping, cleaning, cleaving, splicing, and protecting)
  • No scratches on fiber by thermal stripping (extended tensile of fiber strength by 3kg more)
  • Wide 127mm (5.0 in) color LCD monitor with electrostatic touch screen & bidirectional operation system
  • Powerful lithium polymer battery with large capacity (6000mAh)
  • Resistance to shock, dust, and water
  • Compatible with Fusion Splice-on Connector (FSOC) in accordance with the industry standard
  • HDC FULLY COMPATIBLE OptiTap® STYLE HARDENED SOLUTION

The Swift K33A-HDC is a highly advanced, All-In-One core alignment fusion splicer, designed to perform the major 5 functions systematically: stripping, cleaning, cleaving, splicing and protecting. The Swift K33A-HDC is the best fit for fusion splicing and fusion splice-on connectors (SOC) of FTTx network applications. It eliminates fatal issues common with conventional mechanical connectors including low quality, weak durability and high maintenance costs. The Swift K33A-HDC fusion splicer coupled with our fusion splice-on connectors provides customers the best ROI.







Product Features

  • ROTATING BLADE LIFE UP TO 77,000 cleaves
  • ELECTRODE LIFE UP TO 18,000
  • Remote maintenance via internet
  • The fusion splicer with All-in-One system provides the best workability with integrated 5 functions in one unit (stripping, cleaning, cleaving, splicing, and protecting)
  • No scratches on fiber by thermal stripping (extended tensile of fiber strength by 3kg more)
  • Wide 127mm (5.0 in) color LCD monitor with electrostatic touch screen & bidirectional operation system
  • Powerful lithium polymer battery with large capacity (6000mAh)
  • Resistance to shock, dust, and water
  • Compatible with Fusion Splice-on Connector (FSOC) in accordance with the industry standard
  • HDC FULLY COMPATIBLE OptiTap® STYLE HARDENED SOLUTION
Products specifications
Attribute nameAttribute value
Fiber AlignmentIPAAS Core Alignment
Fiber Count1 Fiber
Fiber DimensionsCladding diameter: 80µm~150µm; Coating diameter: 100µm-3mm
Splicing ModesSplice Mode: 300, Heat Mode: 100
Typical Splice LossSM: 0.02dB, MM: 0.01dB, DS:0.04dB, NZDS: 0.04dB
Return Loss (dB) Min> 60dB
Splicing TimeTypical 6 sec (Quick Mode)
Sleeve Heating Time9 sec. (IS-45 mode, IS-45 sleeve); 13 sec. (IS-60 mode, IS-60 sleeve)
Tension Test2N/4.4N
Storage ConditionsTemperature: 40°F~176°F, Humidity: 0~95%
Dimensions215mm x 136mm x 137mm (excluding bumper)
Weight2.4kg (including battery)
Field of View200X
Magnification400X
Power Supply100 ~ 240V AC
Number of Splice Cycles with BatteryTypically 282 Cycles
Electrode Life18,000 Splices
Blade Life77,000 Cleaves
PortsUSB, External Power (DC 12V available for car cigar jack)
