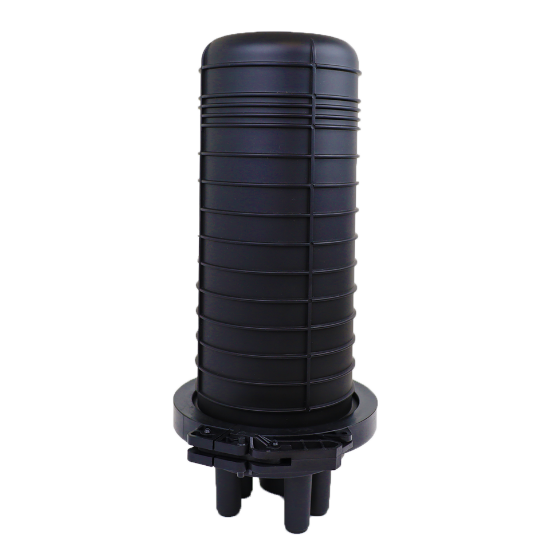

96 Fiber Outdoor Vertical Splice Enclosure - (x4) 24 Fiber Splice Trays Included - 5 Ports (x1) at 25mm and (x4) at 19mm

96 Fiber Outdoor Vertical Splice Enclosure - (x4) 24 Fiber Splice Trays Included - 5 Ports (x1) at 25mm and (x4) at 19mm
Item No: VTB-P204B
MFG Part#: VTB-P204B
Manufacturer: Fibertronics, Inc.
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$102.30

Fibertronics Inc.’s vertical splice enclosures, also known as dome-style closures, provide rugged, IP68-rated protection for fiber optic splicing in demanding outdoor environments. Designed for underground, aerial, or pole-mounted installations, these closures safeguard fiber connections against moisture, dirt, insects, and physical damage. Their robust, weather-resistant construction ensures reliable performance in temperatures ranging from -40°C to 65°C, making them ideal for CATV, telecommunications, and FTTx networks.

The dome-style design not only offers excellent mechanical strength but also makes the closures easy to install in both buried and above-ground applications. With customizable port configurations, flexible mounting options, and support for high-capacity splice trays, they accommodate the evolving needs of today’s fiber optic networks.

Whether deployed in outside plant infrastructure or within a building, Fibertronics’ vertical splice enclosures deliver long-term protection and secure management of fiber joints. They combine advanced sealing technology with durability to ensure your fiber optic connections remain safe, stable, and future-ready.






Vertical Splice Enclosure Features & Specifications

  • All performance indicators meet GR-771-CORE standards
  • Can accommodate up to 144 fiber splices with additional splice trays
  • Splice tray has slot for PLC splitter—1:8 or 1:16
  • Suitable for aerial, wall-mount, or direct burial applications
  • IP68 Rated – Dustproof and water-resistant
  • Corrosion and UV resistant



96 Fiber Outdoor Vertical Splice Enclosure Accessories

  • Fiber Splice Protection Tube
  • EVA Transparent Hose (x4)
  • Heat Shrink Tube - 30mm x 50mm (x4)
  • Dual Heat Shrink Tube - 75mm x 50mm (x1)
  • Nylon Ties
  • Dividing Clip
  • Tin Foil
  • Insulating Tape
  • Sandpaper

Fibertronics Inc.’s vertical splice enclosures, also known as dome-style closures, provide rugged, IP68-rated protection for fiber optic splicing in demanding outdoor environments. Designed for underground, aerial, or pole-mounted installations, these closures safeguard fiber connections against moisture, dirt, insects, and physical damage. Their robust, weather-resistant construction ensures reliable performance in temperatures ranging from -40°C to 65°C, making them ideal for CATV, telecommunications, and FTTx networks.

The dome-style design not only offers excellent mechanical strength but also makes the closures easy to install in both buried and above-ground applications. With customizable port configurations, flexible mounting options, and support for high-capacity splice trays, they accommodate the evolving needs of today’s fiber optic networks.

Whether deployed in outside plant infrastructure or within a building, Fibertronics’ vertical splice enclosures deliver long-term protection and secure management of fiber joints. They combine advanced sealing technology with durability to ensure your fiber optic connections remain safe, stable, and future-ready.






Vertical Splice Enclosure Features & Specifications

  • All performance indicators meet GR-771-CORE standards
  • Can accommodate up to 144 fiber splices with additional splice trays
  • Splice tray has slot for PLC splitter—1:8 or 1:16
  • Suitable for aerial, wall-mount, or direct burial applications
  • IP68 Rated – Dustproof and water-resistant
  • Corrosion and UV resistant



96 Fiber Outdoor Vertical Splice Enclosure Accessories

  • Fiber Splice Protection Tube
  • EVA Transparent Hose (x4)
  • Heat Shrink Tube - 30mm x 50mm (x4)
  • Dual Heat Shrink Tube - 75mm x 50mm (x1)
  • Nylon Ties
  • Dividing Clip
  • Tin Foil
  • Insulating Tape
  • Sandpaper
Products specifications
Attribute nameAttribute value
Ports5 Ports
Splice Capacity96 Fibers
Maximum Splice Capacity144 Fibers
Splice Tray Capacity6 Trays
Cable Diameter By Port1x 25mm / 4x 19mm
