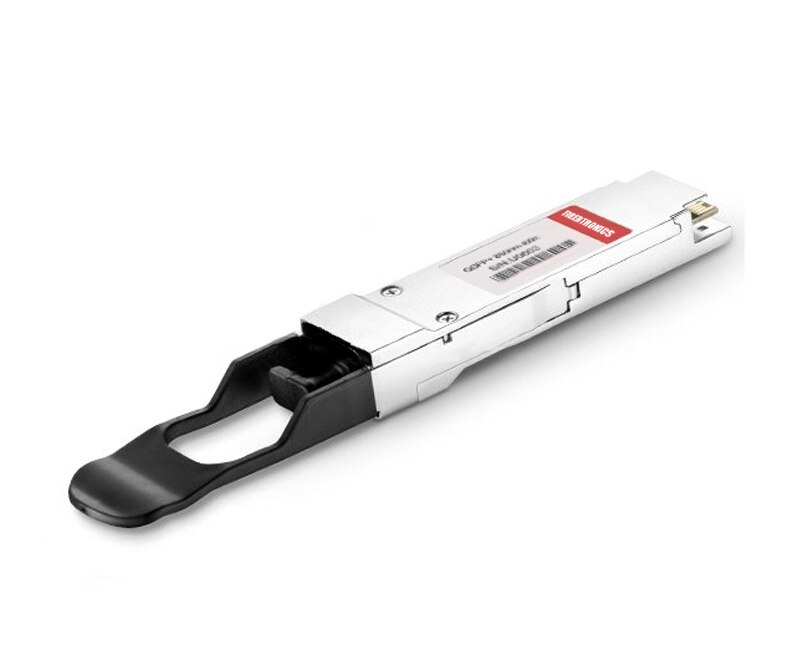

Dell 407-BBOI Compatible 40Gb QSFP+ Transceiver Module - 850nm - 150 Meter Distance
Dell 407-BBOI Compatible 40GBASE-SR4 QSFP+ 850 MTP COMPATIBLE
Item No: 407-BBOI
MFG Part#: 407-BBOI
This high-quality Dell 407-BBOI Compatible 40GBASE-SR4 QSFP+ 850nm 150m Transceiver. A cost-effective solution that provides high bandwidth and transmission rates over short distances. Each transceiver is 100% optically inspected and tested for compatability before shipping.
Product Features
- 4 channels full-duplex transceiver module
- Up to 10Gbps data links per channel
- Maximum link length of 300m on OM4
- 850nm VCSEL array laser and receiver
- MPO Connector
- Hot-pluggable QSFP+ footprint
- Single 3. 3V power supply
- Operating temperature: 0℃ to 70℃
- RoHS
- Digital Diagnostic Monitor(DDM)
- Power Consumption < 1.5W
Product Specifications
| Dell Compatible | 407-BBOI |
| Vendor Name | Fibertronics |
| Form Type | QSFP+ |
| Max Data Rate | 10.3Gbps |
| Wavelength | 850nm |
| Distance | 150m |
| Connector Interface | LC Duplex |
| Optical Component type | 850nm VCSEL array laser |
| Mode | MMF Multimode Fiber |
| TX Power | -5~3dBm |
| Receiver Sensitivity | < -10dBm |
| Temperature Range | 0 to +70°C (32 to 158°F) |
