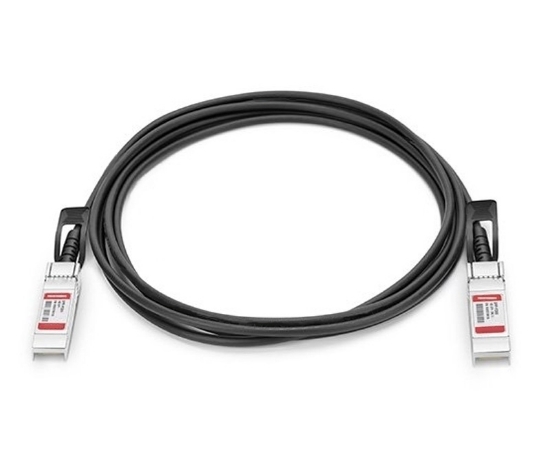

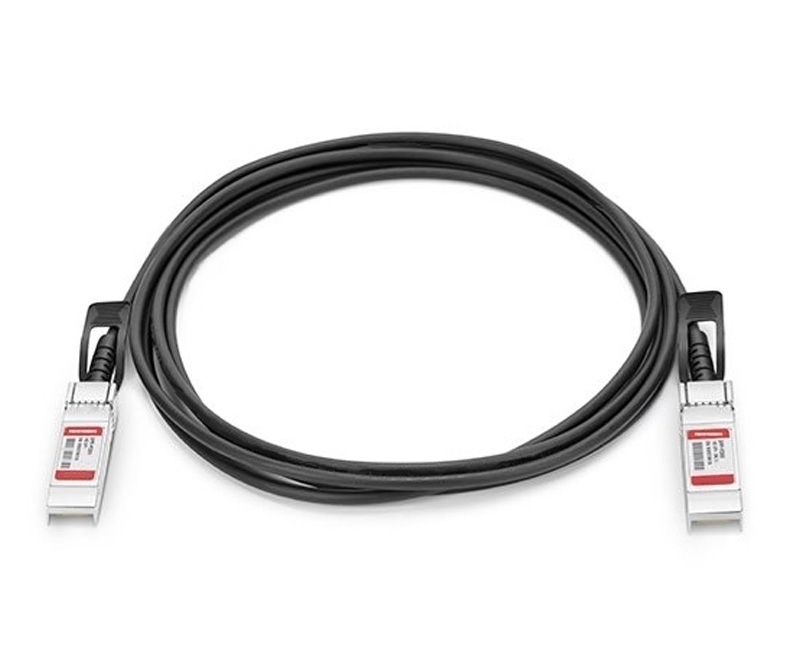

Brocade 10G-SFPP-TWX-P-0101 Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable - 1 Meters in Total Length

This is a high-quality Brocade Compatible 10G SFP+ Passive DAC (Direct Attach Cable) Copper Twinax cable. It is a cost-effective solution that provides high bandwidth and transmission rates over short distances. SFP+ Copper Twinax cables offer a connection within racks and across adjacent racks. SFP+’s directly attached Twinax cable assemblies support 10 Gigabit Ethernet.  Each DAC cable is 100% optically inspected and tested for compatibility before shipping out to you.

A direct attach cable, short for DAC cable, is a type of factory terminated twinax cable that connects directly into transceivers and can be bought in several lengths for short distances. These cables consist of fixed lengths of shielded copper coaxial or fiber optic cable with single pluggable transceivers at either end, these transceivers have varying gauge values between 24AWG and 30AWG. The DAC cable may be capable of interconnection up to 15 meters using a twinaxial copper cable and can reach 100 meters over an active optical cable at 10Gbps, 40Gbps or higher.

Direct Attach Cables can be either passive or active. The passive direct attach cable has no electrical components, which results in less power consumption. Active direct attach cables are composed of electrical components, so they use more power, but they gain more distance and increase signal strength. Active cables are more expensive and consume more power when in use compared to passive direct attach cables.

DAC Cable Features & Specifications

• Copper Passive
• AWG30
• PVC (OFNR) Jacket
• Easy to Install
• Hot pluggable
• Low insertion loss
• RoHS Compliant
• Temperature Range: 0°C to 70°C
• Available in various lengths

DAC Cable Options Available:

• 10G SFP+ to SFP+ DAC
• 25G SFP28 to SFP28 DAC
• 40G QSFP+ to QSFP+ DAC
• 40G QSFP+ to 4x SFP+ DAC
• 100G QSFP28 to 4x SFP28 DAC
• 100G QSFP28 to QSFP28 DAC
• 56G QSFP+ to QSFP+ DAC
