Optiwave™ Wall Mount Termination Box with Double Door - Lockable - Includes (x4) Slack Spools - Accepts (x9) LGX® Adapters Plates
Optiwave™ Wall Mount Termination Box with Double Door - Lockable - Includes (x4) Slack Spools - Accepts (x9) LGX® Adapters Plates (not included)

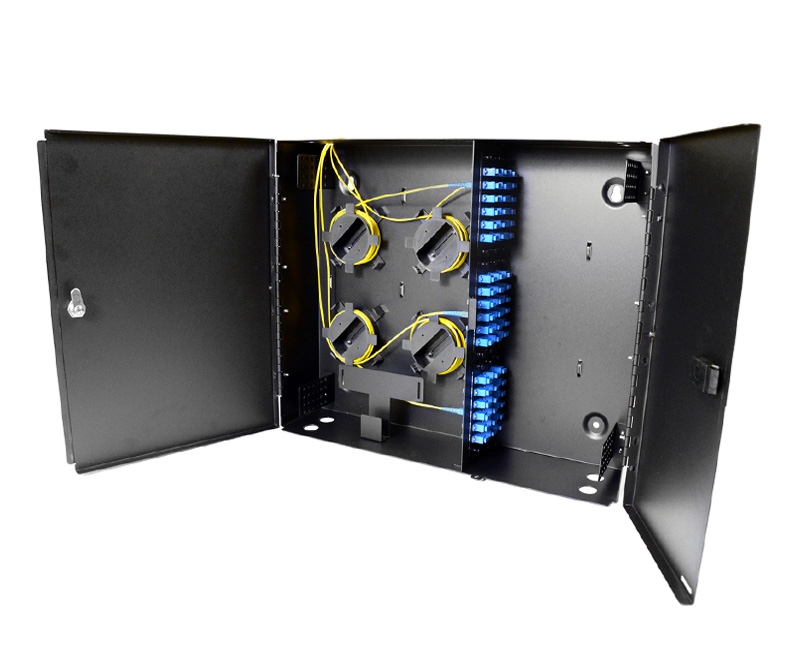

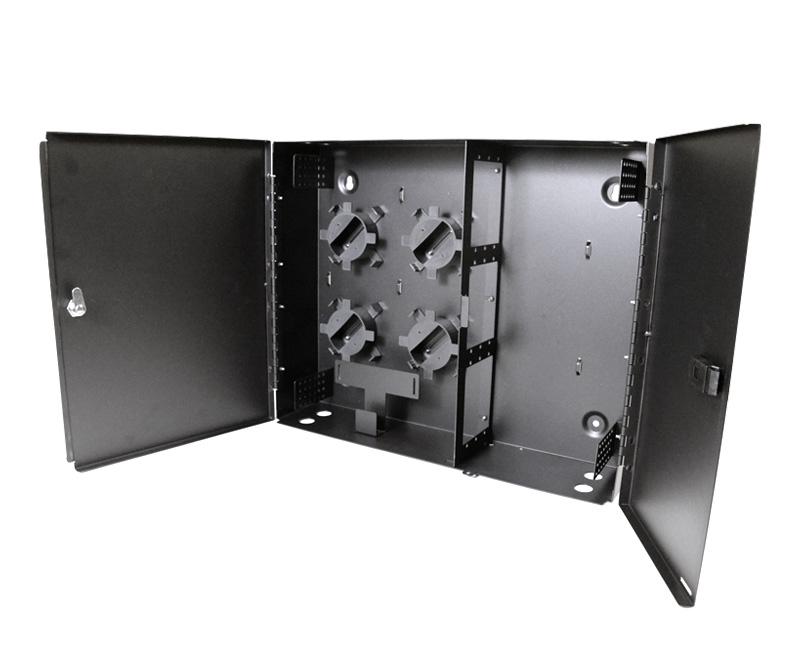

The Fibertronics Inc. Optiwave™ WTB-FWM-6209 Double Door Wall Mount Termination Box is a high-density wall-mount fiber optic enclosure. It offers an easy point of convergence for splicing and connecting in wall mount applications. Equipped with four built-in slack spools and a lockable door, this box ensures safe and organized routing of fiber in limited-space environments. It accommodates (x9) LGX-style adapter plates, supporting fiber densities ranging from 54 to 216 fibers when using single-fiber connectors, with the potential for even higher densities when utilizing multi-fiber connectors. With dimensions of 17.5h x 21.25w x 5d inches, the box is well-suited for applications where space is at a premium.
Optiwave™ termination boxes are engineered for quick and easy installation, making them ideal for both low- and high-density fiber routing needs. Constructed from durable 16-gauge steel, they offer a long-lasting termination point while maintaining a sleek and professional appearance. The integrated slack spool allows for efficient excess fiber management and includes space for securing splice trays. Designed around the widely adopted LGX format, these boxes provide flexible compatibility with a variety of connector terminations, and Fibertronics offers a wide selection of LGX-style adapter plates to meet diverse project requirements.
The Optiwave™ wall mount boxes are an excellent choice for telecommunications rooms, enterprise networks, industrial facilities, and residential fiber installations. Their straightforward layout minimizes installation time for technicians, while the lockable door adds an extra layer of protection against tampering or accidental disruption. This reliable and versatile enclosure provides an effective solution for organizing and safeguarding your fiber connections.
Please Note: Mounting hardware is not included.
If you have any questions about our various indoor wall mount boxes, please reach out to one of our specialists, which you can find on our Contact page.
Wall Mount Patch Panel Features & Specifications
- 9 LGX Adapter Panels
- 4 Slack Spools
- Compact
- High Density
- Powder Coated

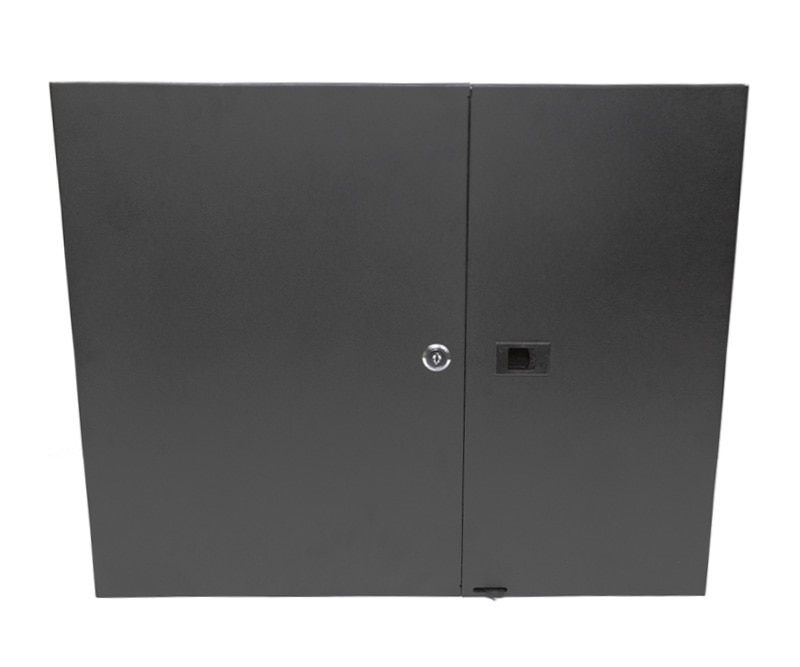

- 2 Outer Doors
- Network Side Door is Key Locked
- Distribution Side Door with Padlock Option (Padlock not included)

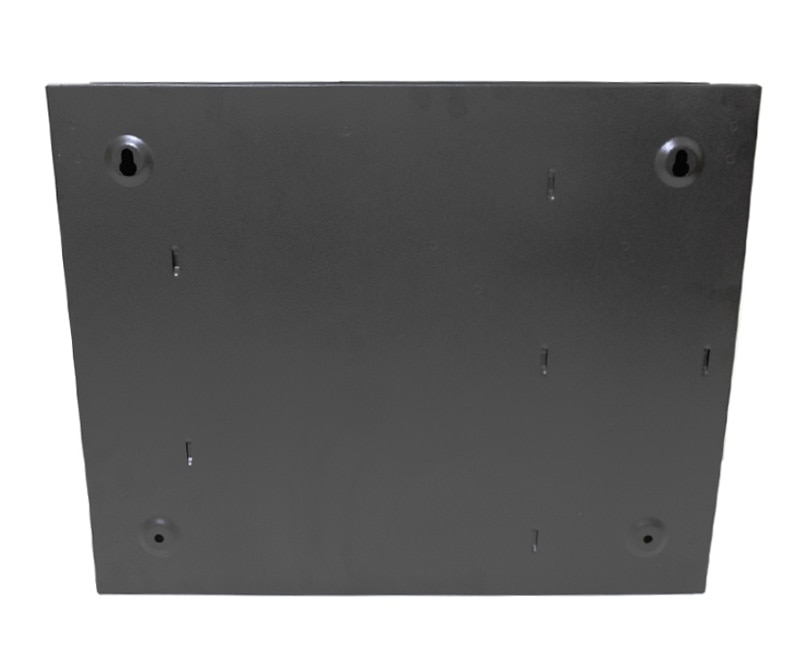

- Screw Holes on the Rear Panel
- Material: 16 Gauge Powder Coated Steel
- Height: 440mm (17.5")
- Width: 540mm (21.0")
- Depth: 128mm (5.0")
- Weight: 8.12kg (17.90lbs)
Wall Mount Patch Panel Accessories
- Keys: 2
- Cable Ties: 5
- Grommets: 8
- Laser Warning Labels: 1
- Location Label: 1
- Grounding Screw: 1
