Fiber Optic Termination Boxes play a crucial role in connecting fiber optic cables and pigtails while ensuring their protection and facilitating easy distribution. These boxes are predominantly utilized in the telecommunications industry and network equipment rooms.

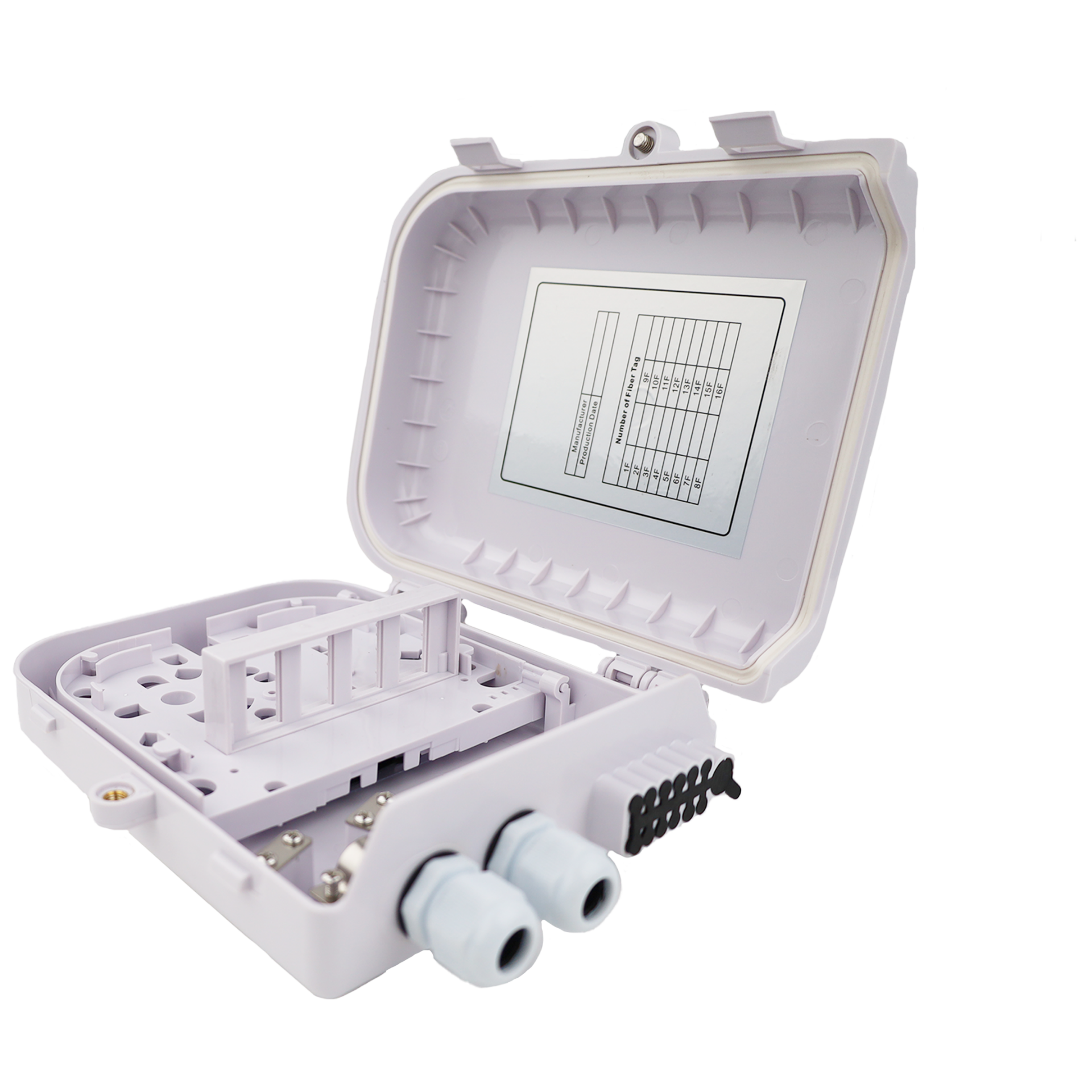

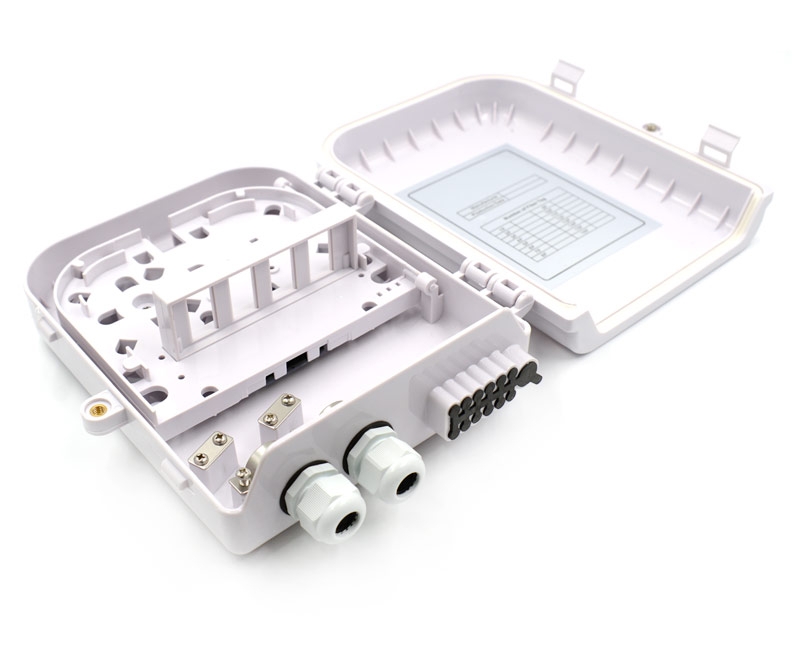

In Fiber to the Home (FTTH) applications, termination boxes serve as distribution points specifically tailored for managing fiber cables. Their primary function is to terminate fiber optic cables and establish connections between the cable's core and pigtail. Typically, a termination box consists of three main parts: the fiber connector protection element, internal components, and housing. The internal components, including fixtures, fixed fiber trays, and support frames, are encapsulated within an impact-resistant and IP-rated housing to safeguard against operational and placement-related damage.

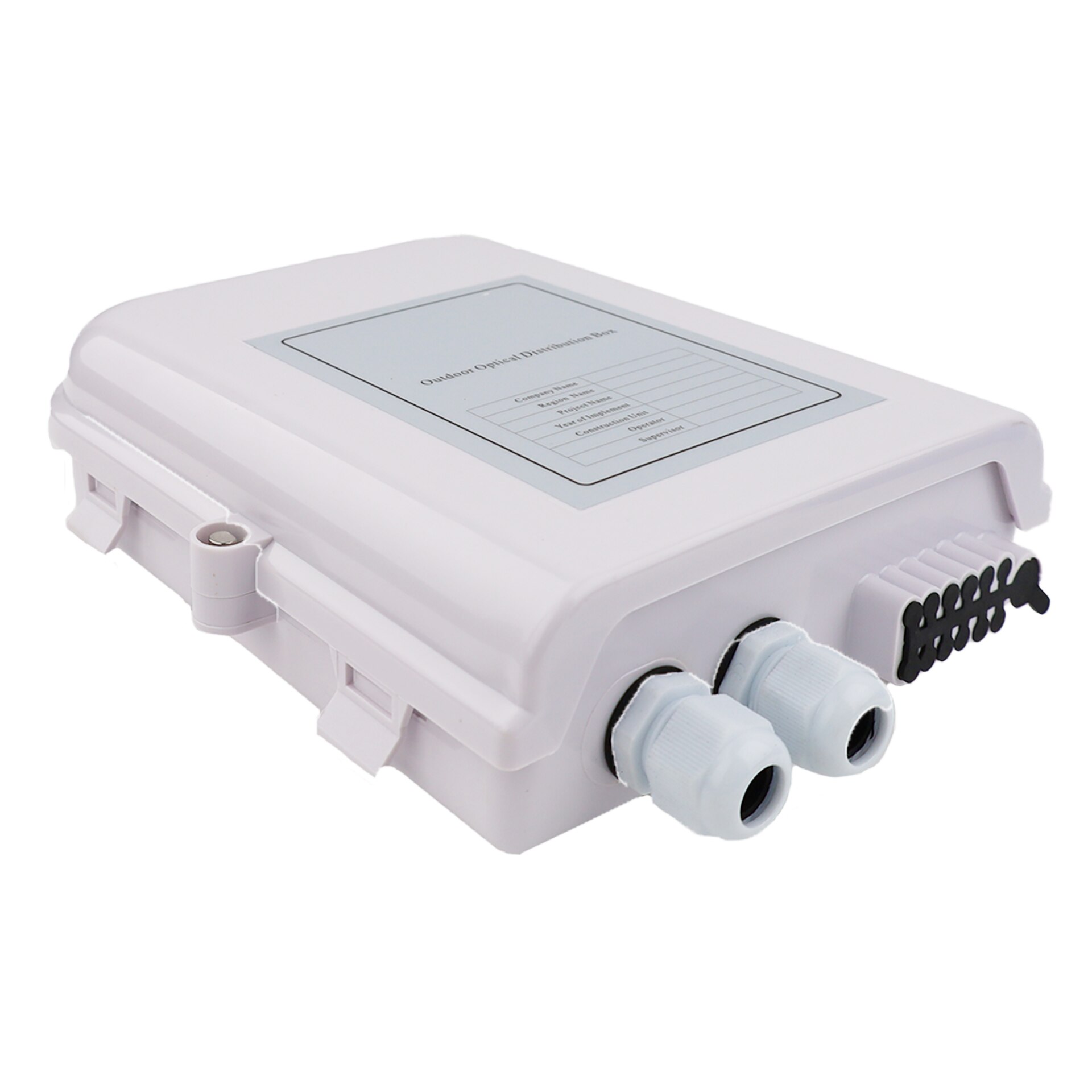

To withstand prolonged outdoor use, fiber termination boxes must be dustproof and possess excellent corrosion resistance. Their housing should be easily accessible yet secure, often featuring provisions for a locking mechanism to prevent unauthorized access.
Based on their design, fiber termination boxes can be categorized into rack-mounted and wall-mounted variants. Wall-mounted boxes are typically sealed and hung securely on walls, while rack-mounted ones feature rear and front doors, directly attaching to server racks via side rails.
Fiber termination boxes find widespread application in agricultural telephone networks, data and image transmission systems, and CATV cable TV series. They are indispensable for various fiber optic systems requiring interconnection between optical cables, patch cords, and pigtails, as well as for distribution and termination purposes. Additionally, termination boxes facilitate jointing fiber pigtails and offer protection for fiber optic splices.
