16-Fiber Termination Box – 3 Input Ports (12mm), 8 Output Ports (3mm)

233mm x 204mm x 60mm
Item No: FOTB-X30A 8
MFG Part#: FOTB-X30A 8
Manufacturer: Fibertronics, Inc.
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$30.00

Fiber Optic Termination Boxes

Fibertronics Inc. offers rugged, compact fiber optic termination boxes designed to organize, protect, and secure fiber terminations and patch connections across diverse network environments. Made from durable polycarbonate (PC) and ABS materials, these wall-mountable enclosures deliver excellent impact resistance and long-lasting performance. Engineered for efficient cable management and fiber protection, they support various cable types and connector interfaces to ensure neat and secure fiber organization. Ideal for indoor and sheltered outdoor use, these termination boxes provide reliable defense against dust, moisture, and mechanical stress, facilitating easy network maintenance and expansion with versatile installation options.

FOTB-X30A 8

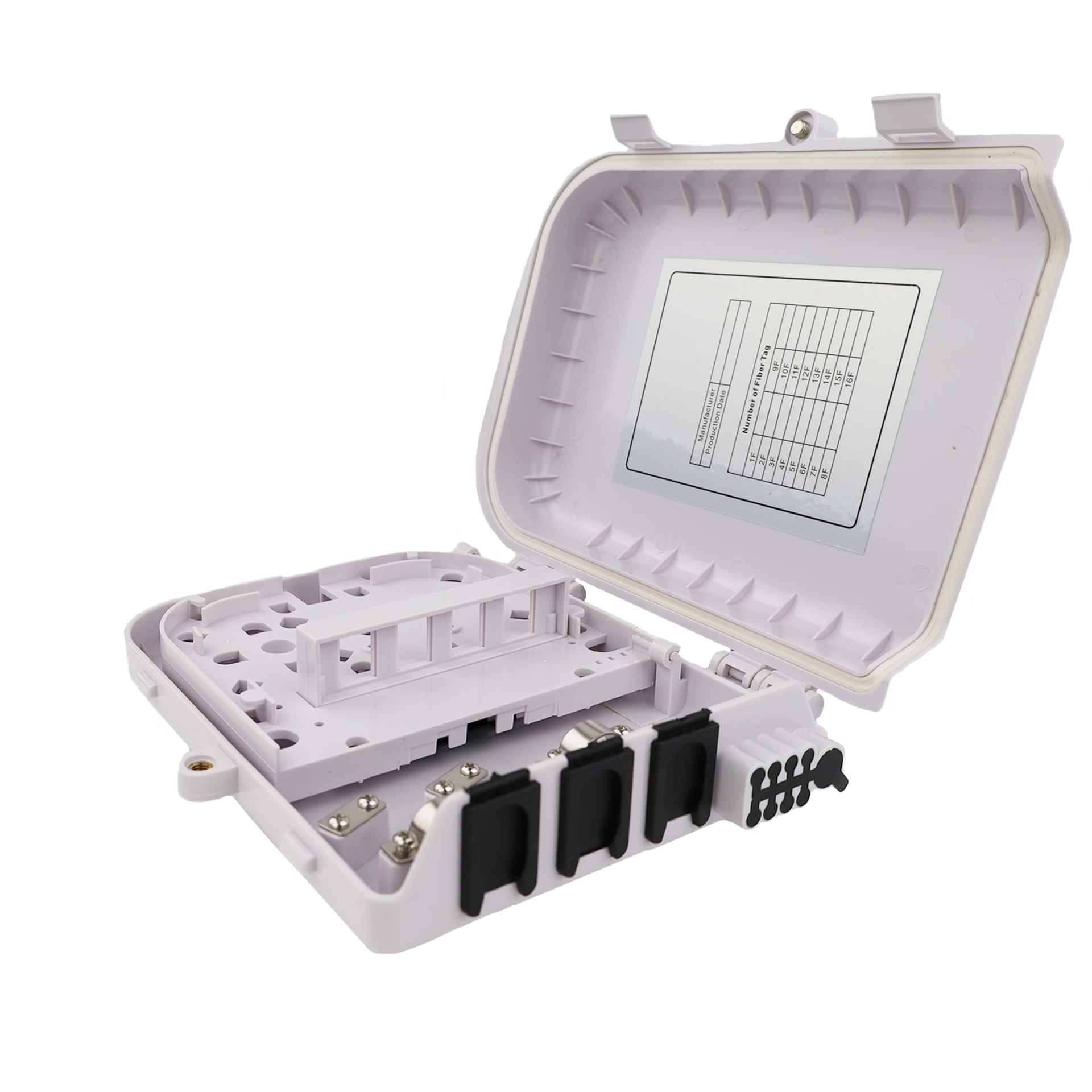

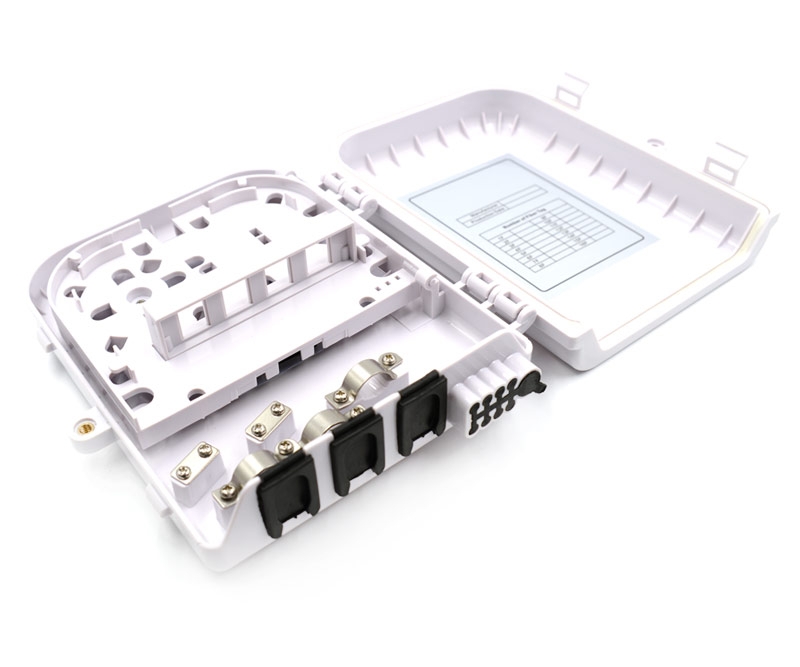

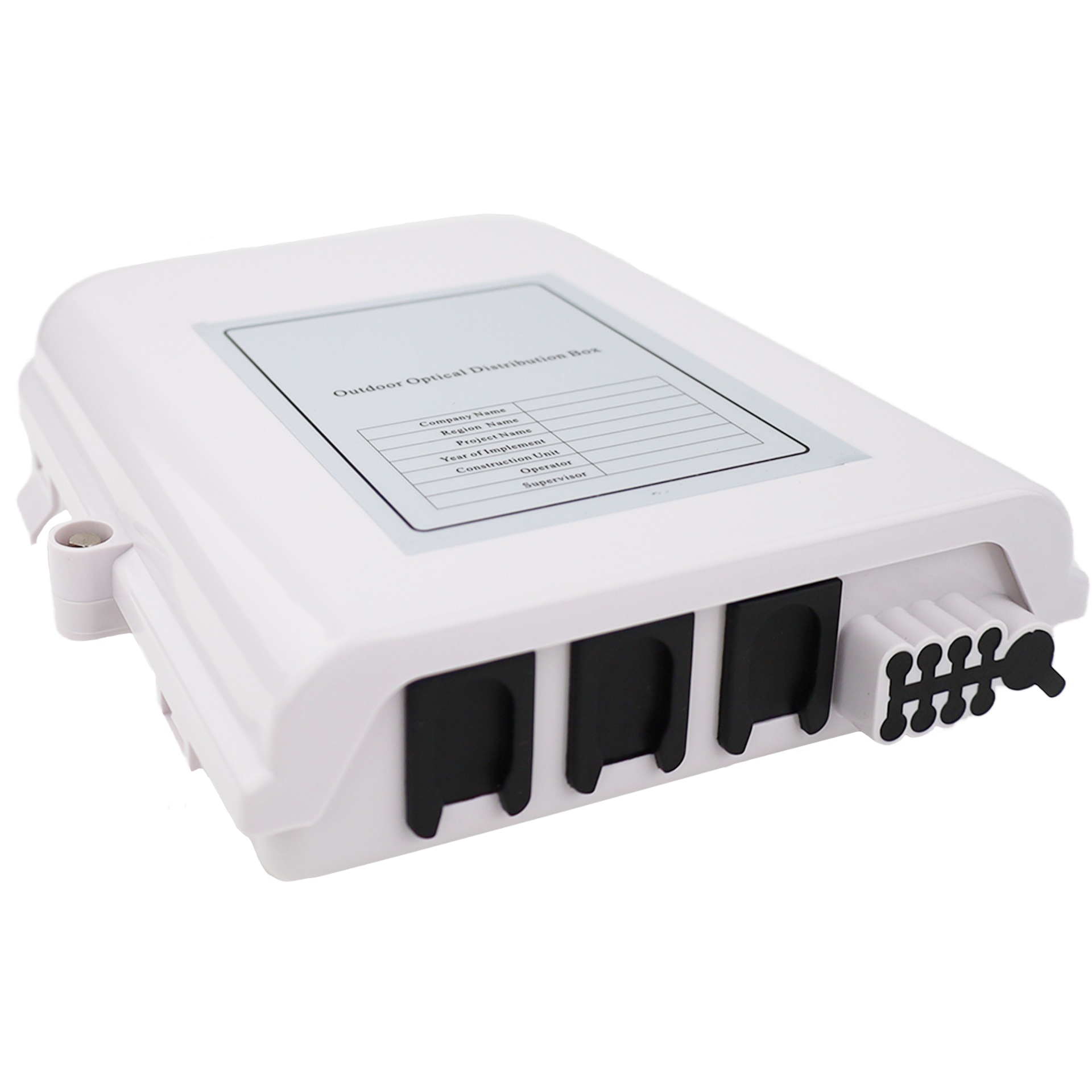

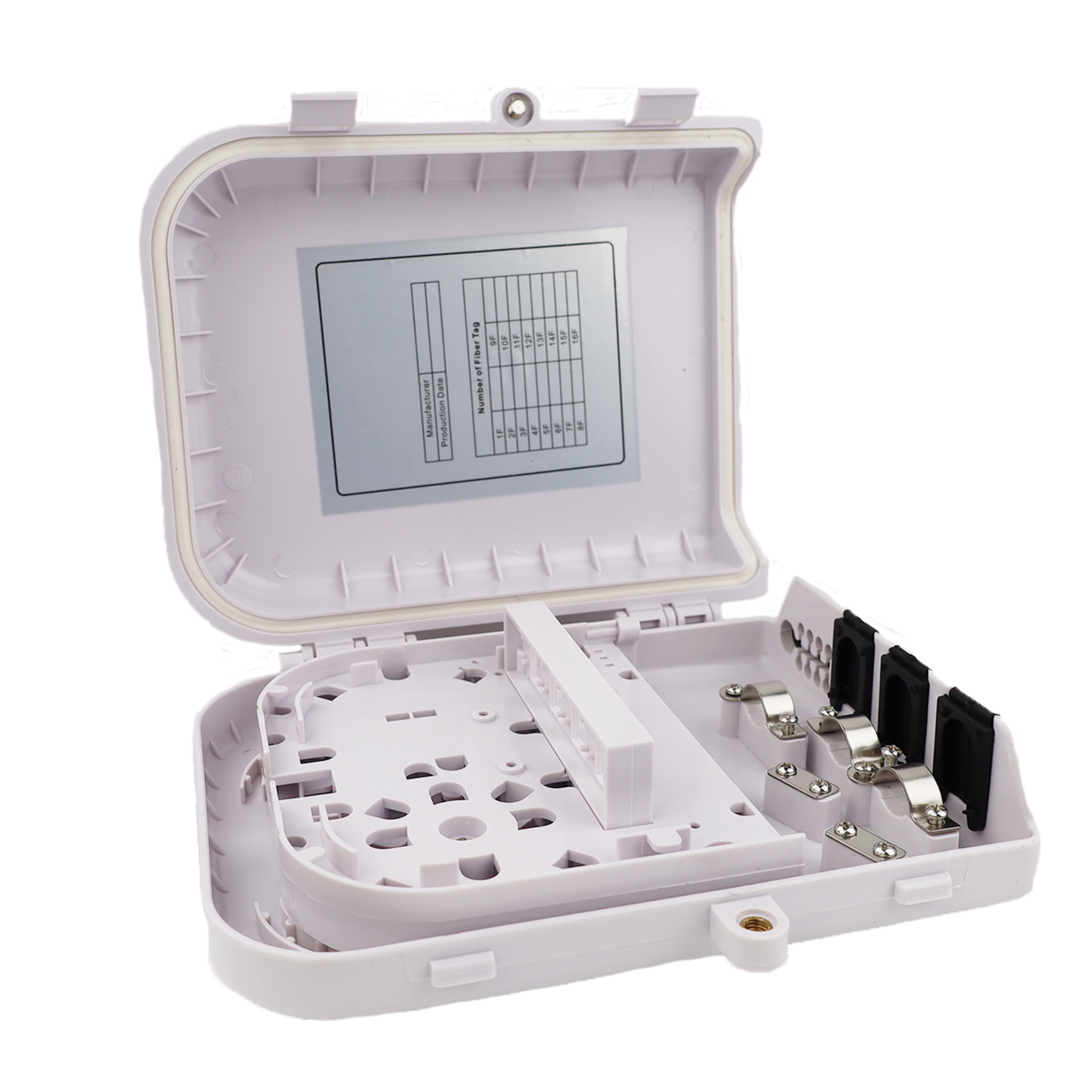

The FOTB-X30A 8 termination box provides flexible fiber management with 3 input ports for cables up to 12 mm and 8 output ports for drop cables up to 3 mm in diameter. With a splice capacity of 16 fibers, it’s ideal for medium-scale FTTH or access network applications.

The box supports up to 8 adapter slots, compatible with SC simplex or LC duplex connectors, and accepts both flanged and non-flanged adapters (sold separately). Constructed from durable PC + ABS and rated IP54, it offers solid protection against dust and light moisture for indoor or sheltered outdoor use.

Measuring 233 mm x 204 mm x 60 mm, the FOTB-X30A 8 includes a wall mount kit for straightforward installation.

Fiber Optic Termination Boxes

Fibertronics Inc. offers rugged, compact fiber optic termination boxes designed to organize, protect, and secure fiber terminations and patch connections across diverse network environments. Made from durable polycarbonate (PC) and ABS materials, these wall-mountable enclosures deliver excellent impact resistance and long-lasting performance. Engineered for efficient cable management and fiber protection, they support various cable types and connector interfaces to ensure neat and secure fiber organization. Ideal for indoor and sheltered outdoor use, these termination boxes provide reliable defense against dust, moisture, and mechanical stress, facilitating easy network maintenance and expansion with versatile installation options.

FOTB-X30A 8

The FOTB-X30A 8 termination box provides flexible fiber management with 3 input ports for cables up to 12 mm and 8 output ports for drop cables up to 3 mm in diameter. With a splice capacity of 16 fibers, it’s ideal for medium-scale FTTH or access network applications.

The box supports up to 8 adapter slots, compatible with SC simplex or LC duplex connectors, and accepts both flanged and non-flanged adapters (sold separately). Constructed from durable PC + ABS and rated IP54, it offers solid protection against dust and light moisture for indoor or sheltered outdoor use.

Measuring 233 mm x 204 mm x 60 mm, the FOTB-X30A 8 includes a wall mount kit for straightforward installation.

Products specifications
Attribute nameAttribute value
Ports3 Input Ports and 8 Output Ports
Splice Capacity16 Fibers
Cable Diameter By Port3x Φ12mm max. / 8x Φ3mm max.
Dimensions233mm x 204mm x 60mm
Adapter Slots8 SC Simplex / LC Duplex Adapters (with or without Flange)
IP RatingIP54
MaterialPC + ABS
AccessoriesWall Mount Kit
