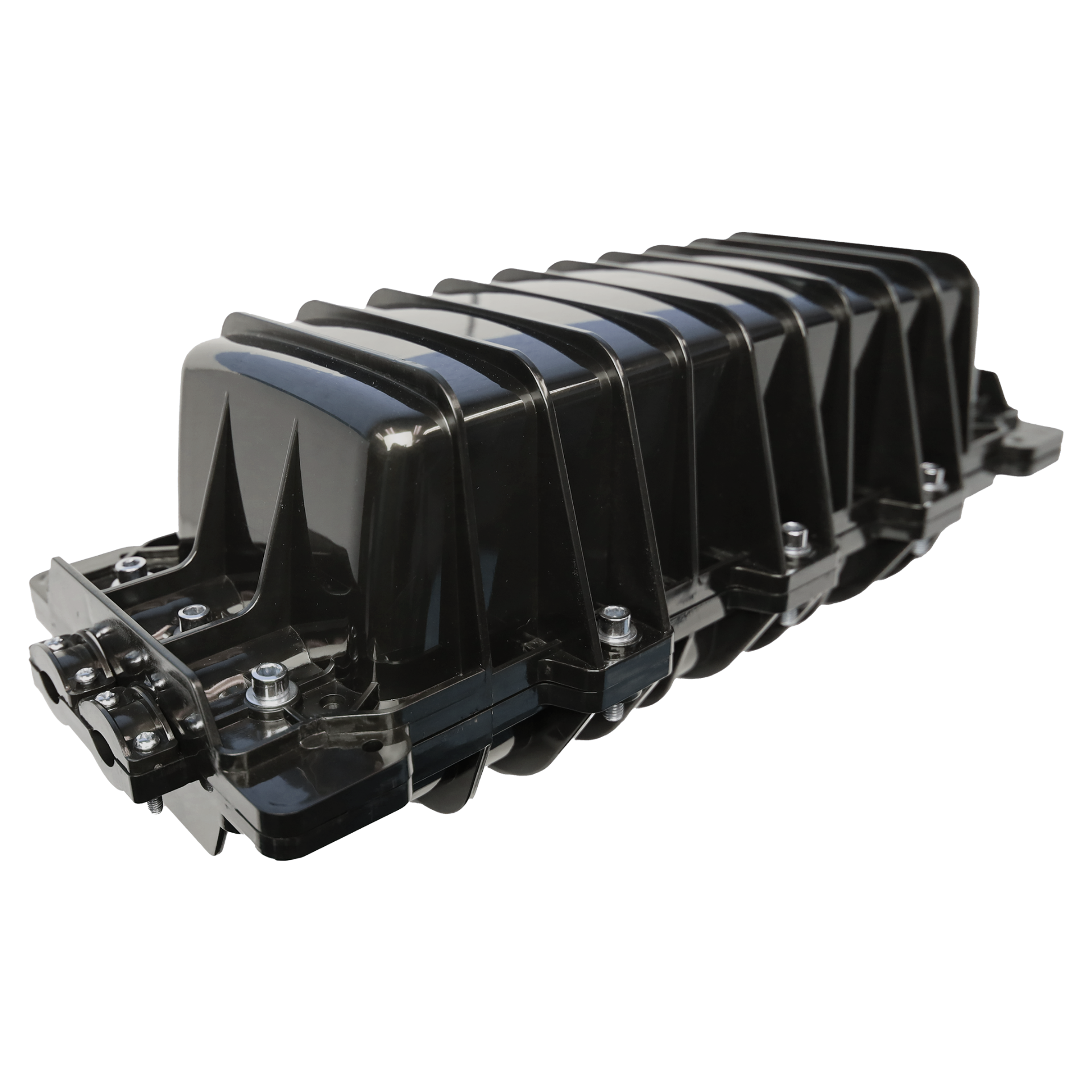

72 Fiber Optic Outdoor Horizontal Splice Closure – 3 Splice Trays Included – 4 Ports at 20mm

72 Fiber Optic Outdoor Horizontal Splice Closure – 3 Splice Trays Included – 4 Ports at 20mm
Item No: FT-H9-17-72
MFG Part#: FT-H9-17-72
Manufacturer: Fibertronics, Inc.
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$92.16

The FT-H9-17-72 is a horizontal fiber optic splice enclosure designed for two inputs and two outputs. Constructed with a sturdy plastic shell and equipped with a rubber gasket, this enclosure ensures durability even in harsh conditions. With a maximum capacity of 96 fibers, it operates within temperatures ranging from -40°C to 65°C. Featuring a rubberized seal, it effectively prevents air and water leaks. This versatile splice enclosure can be wall-mounted, duct-mounted, aerial, or buried, making it suitable for various applications.

Horizontal splice enclosures serve to protect and organize fiber optic cables, whether in external plants or indoor environments. They facilitate the safe connection and storage of optical fibers, ensuring the integrity of fiber lines and cables even in unfriendly environments. Typically resembling flat or rounded cases, these enclosures accommodate one or more fiber splicing trays to provide space and protection for fiber optic splices. Fiber splice trays come in various designs and fiber counts, with common counts being 12 and 24 fibers. Horizontal splice enclosures are designed to be waterproof and dustproof, constructed from high tensile plastic for excellent adaptability and compression resistance.






72 Fiber Horizontal Splice Closure Features & Specifications

  • U.V and Chemical Resistant
  • May be used for Cut, Uncut and Taut Sheath Applications
  • Dust and Waterproof design
  • Ideal for Aerial and Underground applications
  • Easy setup and installation

The FT-H9-17-72 is a horizontal fiber optic splice enclosure designed for two inputs and two outputs. Constructed with a sturdy plastic shell and equipped with a rubber gasket, this enclosure ensures durability even in harsh conditions. With a maximum capacity of 96 fibers, it operates within temperatures ranging from -40°C to 65°C. Featuring a rubberized seal, it effectively prevents air and water leaks. This versatile splice enclosure can be wall-mounted, duct-mounted, aerial, or buried, making it suitable for various applications.

Horizontal splice enclosures serve to protect and organize fiber optic cables, whether in external plants or indoor environments. They facilitate the safe connection and storage of optical fibers, ensuring the integrity of fiber lines and cables even in unfriendly environments. Typically resembling flat or rounded cases, these enclosures accommodate one or more fiber splicing trays to provide space and protection for fiber optic splices. Fiber splice trays come in various designs and fiber counts, with common counts being 12 and 24 fibers. Horizontal splice enclosures are designed to be waterproof and dustproof, constructed from high tensile plastic for excellent adaptability and compression resistance.






72 Fiber Horizontal Splice Closure Features & Specifications

  • U.V and Chemical Resistant
  • May be used for Cut, Uncut and Taut Sheath Applications
  • Dust and Waterproof design
  • Ideal for Aerial and Underground applications
  • Easy setup and installation
Products specifications
Attribute nameAttribute value
Ports4 Ports
Splice Capacity72 Fibers
Maximum Splice Capacity96 Fibers
Splice Trays Included3 Trays
Splice Tray Capacity6 Trays
Cable Diameter By PortΦ20mm max.
Dimensions520mm x 200mm x 180mm
