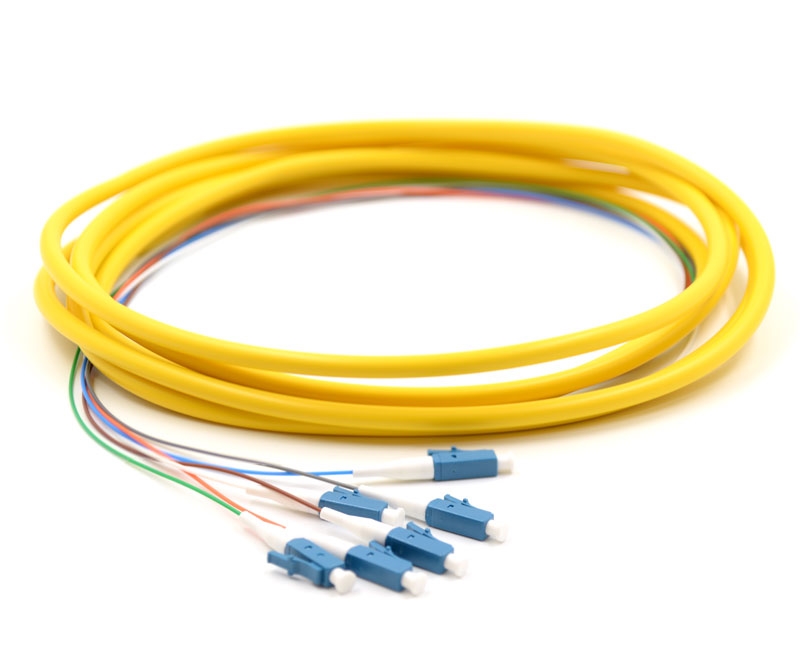

6 Fiber LC/UPC Jacketed Pigtail - 9/125µm Singlemode OS2 - Yellow Distribution Jacket - 3 Meters in Total Length

6 Fiber LC/UPC Jacketed Pigtail - 9/125µm Singlemode OS2 - Yellow Distribution Jacket - 3 Meters in Total Length
Item No: SPJ-6LCSM3
MFG Part#: SPJ-6LCSM3
Manufacturer: Fibertronics, Inc.
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$29.95

This fiber pigtail is crafted to the highest standards, featuring singlemode OS2 9/125 fiber and LC/UPC connectors. Designed for fusion splicing, these pigtails offer exceptional optical performance, durability, and consistency vital for contemporary network demands. Utilizing premium zirconia ferrules and rugged composite hardware, they undergo rigorous quality testing to surpass industry benchmarks, ensuring adherence to the most stringent performance criteria.

Fibertronics, Inc. offers simplex and duplex fiber pigtails in various fiber counts (typically 1, 6, and 12) and a spectrum of colors. Our fiber optic pigtails are equipped with LC, SC, FC, and ST connectors and boast a standard 0.9mm outer diameter cable. Additionally, we provide options for jacketed and unjacketed variants to suit diverse application needs.



Fibertronics, Inc. offers a variety of custom-made fiber optic pigtails with various connector types, please contact us to find out more.





LC Fiber Optic Pigtail Features & Specifications

  • Class: Jacketed
  • Fiber Count: 6
  • Operating Temperature: -40~75°C
  • Storage Temperature: -45~85°C
  • Color-coded to easily identify in the field
  • Low Insertion Loss
  • Low Back Reflection Loss
  • Ideal for use in Telecommunication Networks, LAN, WAN and Data Processing Networks
  • Meets ISO9001, ROHS and Bell Core GR 326-core standards






Applications of the Various Fiber Optic Connectors

LC Connectors

These connectors are typically used in high-density applications due to their small size and their pull-proof design.

SC Connectors

SC connectors are non-optical disconnect connectors with a 2.5mm pre-radius-ed zirconia ferrule. They are ideal for quick patching of cables into rack or wall mounts due to their push-pull design.

FC Connectors

FC connectors feature a durable threaded coupling and are best suited for use within telecommunications applications and make use of non-optical disconnect.

ST Connectors

ST connectors make use of a semi-unique bayonet connection with a 2.5mm ferrule. They are great fiber optic connectors for field installation because of their reliability and durability.

This fiber pigtail is crafted to the highest standards, featuring singlemode OS2 9/125 fiber and LC/UPC connectors. Designed for fusion splicing, these pigtails offer exceptional optical performance, durability, and consistency vital for contemporary network demands. Utilizing premium zirconia ferrules and rugged composite hardware, they undergo rigorous quality testing to surpass industry benchmarks, ensuring adherence to the most stringent performance criteria.

Fibertronics, Inc. offers simplex and duplex fiber pigtails in various fiber counts (typically 1, 6, and 12) and a spectrum of colors. Our fiber optic pigtails are equipped with LC, SC, FC, and ST connectors and boast a standard 0.9mm outer diameter cable. Additionally, we provide options for jacketed and unjacketed variants to suit diverse application needs.



Fibertronics, Inc. offers a variety of custom-made fiber optic pigtails with various connector types, please contact us to find out more.





LC Fiber Optic Pigtail Features & Specifications

  • Class: Jacketed
  • Fiber Count: 6
  • Operating Temperature: -40~75°C
  • Storage Temperature: -45~85°C
  • Color-coded to easily identify in the field
  • Low Insertion Loss
  • Low Back Reflection Loss
  • Ideal for use in Telecommunication Networks, LAN, WAN and Data Processing Networks
  • Meets ISO9001, ROHS and Bell Core GR 326-core standards






Applications of the Various Fiber Optic Connectors

LC Connectors

These connectors are typically used in high-density applications due to their small size and their pull-proof design.

SC Connectors

SC connectors are non-optical disconnect connectors with a 2.5mm pre-radius-ed zirconia ferrule. They are ideal for quick patching of cables into rack or wall mounts due to their push-pull design.

FC Connectors

FC connectors feature a durable threaded coupling and are best suited for use within telecommunications applications and make use of non-optical disconnect.

ST Connectors

ST connectors make use of a semi-unique bayonet connection with a 2.5mm ferrule. They are great fiber optic connectors for field installation because of their reliability and durability.

Products specifications
Attribute nameAttribute value
ClassJacketed
Fiber Count6 Fiber
Mode

ConnectorLC/UPC
