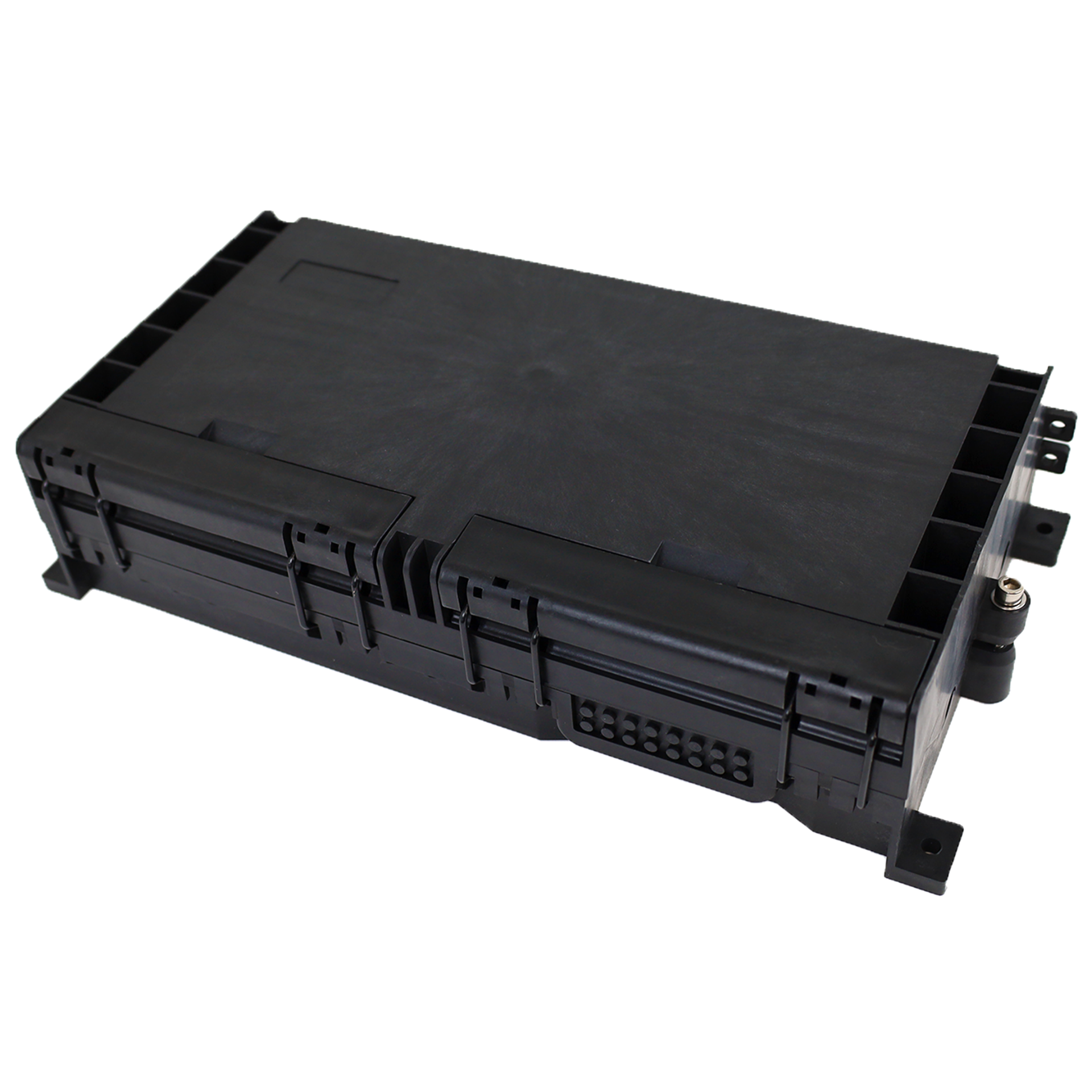

48 Fiber Optic Outdoor Splice Enclosure - 1 Splice Tray Included - 8 Ports at 14mm - 16 Ports for 3mm or 3x2 Drop Cable – Accepts SC Simplex (x16) or LC Duplex (x32) Adapters
48 Fiber Optic Outdoor Splice Enclosure - 1 Splice Tray Included - 8 Ports at 14mm - 16 Ports for 3mm or 3x2 Drop Cable – Accepts SC Simplex (x16) or LC Duplex (x32) Adapters
Item No: HTB-136
MFG Part#: HTB-136
Horizontal Splice Enclosures are designed to protect fiber optic cable splicing and joints. They feature a rubberized seal that makes them both dust and weather resistant, they do not allow air or water leaks. These horizontal splice enclosures are ideal for outdoor use. A fiber outdoor splice enclosures can be either aerial mounted or used in underground applications. The operating temperatures for the horizontal splice enclosures range from -40°C to 85°C. The setup and installation is easy.
A horizontal splice enclosure is a device designed for space and protection of fiber optic cables is used to assemble them. Whether in an external plant or inside a building, the fiber cable closure will connect and store optical fibers safely. The fact that it has excellent mechanical strength as well as a robust outer shell, which guarantees the joints have not been harmed from an unfriendly environment, makes it capable of providing protection to fiber lines and fiber cables.
The horizontal splice enclosure of the fibers is like a flat or rounded case. To provide space and protection for the fiber optic splice, horizontal cable closure is usually composed of one or more fiber splicing trays. There may be different designs and fiber counts on fiber splice trays used for different fiber optic splice enclosures. The common fiber count for the flat fiber splice enclosure is 12 and 24 fibers. Horizontal splice enclosures are designed to be waterproof and dustproof. They have good adaptability and compression resistance, for they are commonly made of high tensile construction plastic.
48 Fiber Horizontal Splice Enclosure Features & Specifications
- U.V and Chemical Resistant
- May be used for Cut, Uncut and Taut Sheath Applications
- Dust and Waterproof design
- Ideal for Aerial and Underground applications
- Easy setup and installation
- Material: Polypropylene with glass fiber reinforcement
