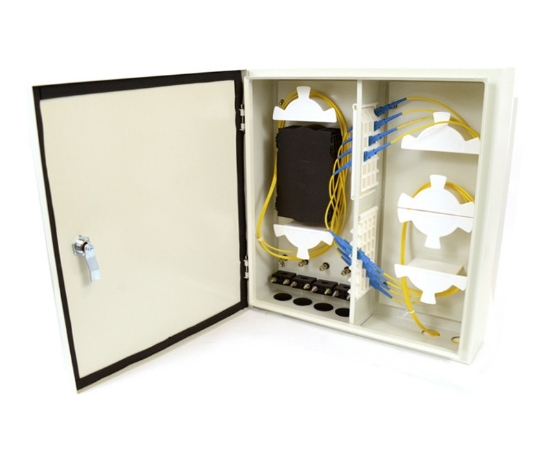

48 Adapter Slot, Outdoor Wall Mount Box, Single Door

The FT-WTB-5B-48 is a wall mount box designed for use in small capacity communication systems and features a sturdy and compact structure. It offers an easy point of convergence for splicing and connecting in wall mount applications. The cabinet is composed of two parts, one links with optical cables for fusion connections between optical cable and fiber pigtails. The second part connects with patch cords. The ingress and egress openings of the box each have a carefully built system for managing fiber and cable. It is wall mountable with lockable doors for added security.

Fibertronics, Inc. offers wall mount termination boxes with one or two doors. This wall mount termination box provides a safe and clean environment for fiber optics. Various accessories help avoid any unexpected damage to the fiber.

Fiber Optic Termination Boxes are great for joining fiber optic cable and pigtails and are specifically designed for the management of fiber cables. By providing safe and secure housing they protect fiber optic splices and enable easy distribution. They are primarily used within the telecommunications industry and network equipment rooms. The terminal boxes are divided into a wall-mounting type, a fixed (rack-mounting) and a flexible (drawing-out, pushing into) type terminal boxes.

**Please Note: Mounting Hardware is not included

 If you have any questions about our various indoor wall mount boxes, please reach out to one of our specialists, which you can find on our Contact page.

Outdoor Wall Mount Box Features & Specifications

• 8 Adapter Holders with 48 Adapter Slots
• 3 x Slack Spool
• High Density
• Electrostatic Spraying
• Outdoor Box
• Patching and Splicing in one unit
• 1 Outer Door with keyed lock
• Mounting hooks on the rear panel (Bracket Included)
• Material: Cold Roll Steel, Electrostatic Spraying
• Height: 455mm (18.0")
• Width: 405mm (16.0")
• Depth: 120mm (4.72")
• Weight: 6.67kg (14.70lbs

Outdoor Wall Mount Box Accessories

• Keys: 2
• Wall Mount Brackets: 1
• Wall Anchors: 4
• Washers: 1 x Pack of ST/FC Washers
• Additional Accessories: 4 x Packets of Splice Sleeves, Cable Ties and Location Labels
