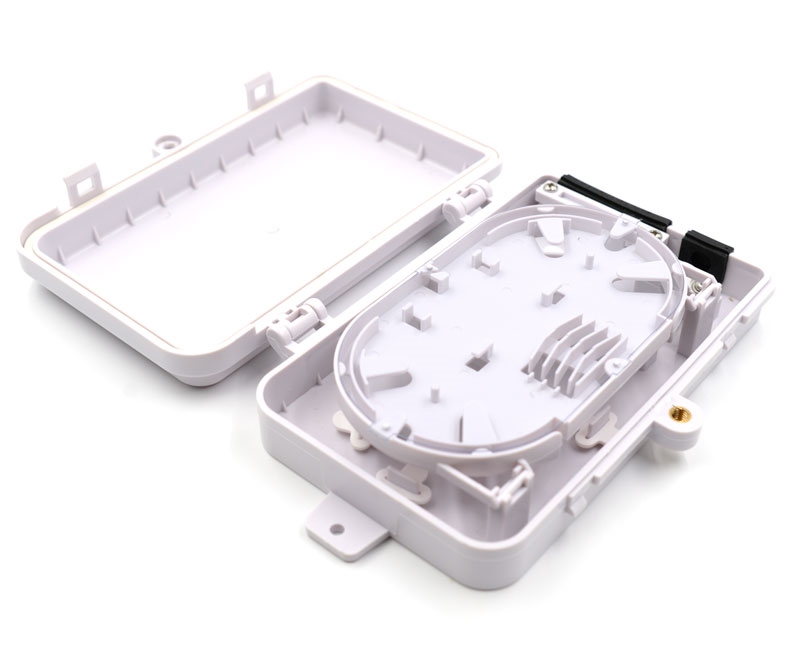

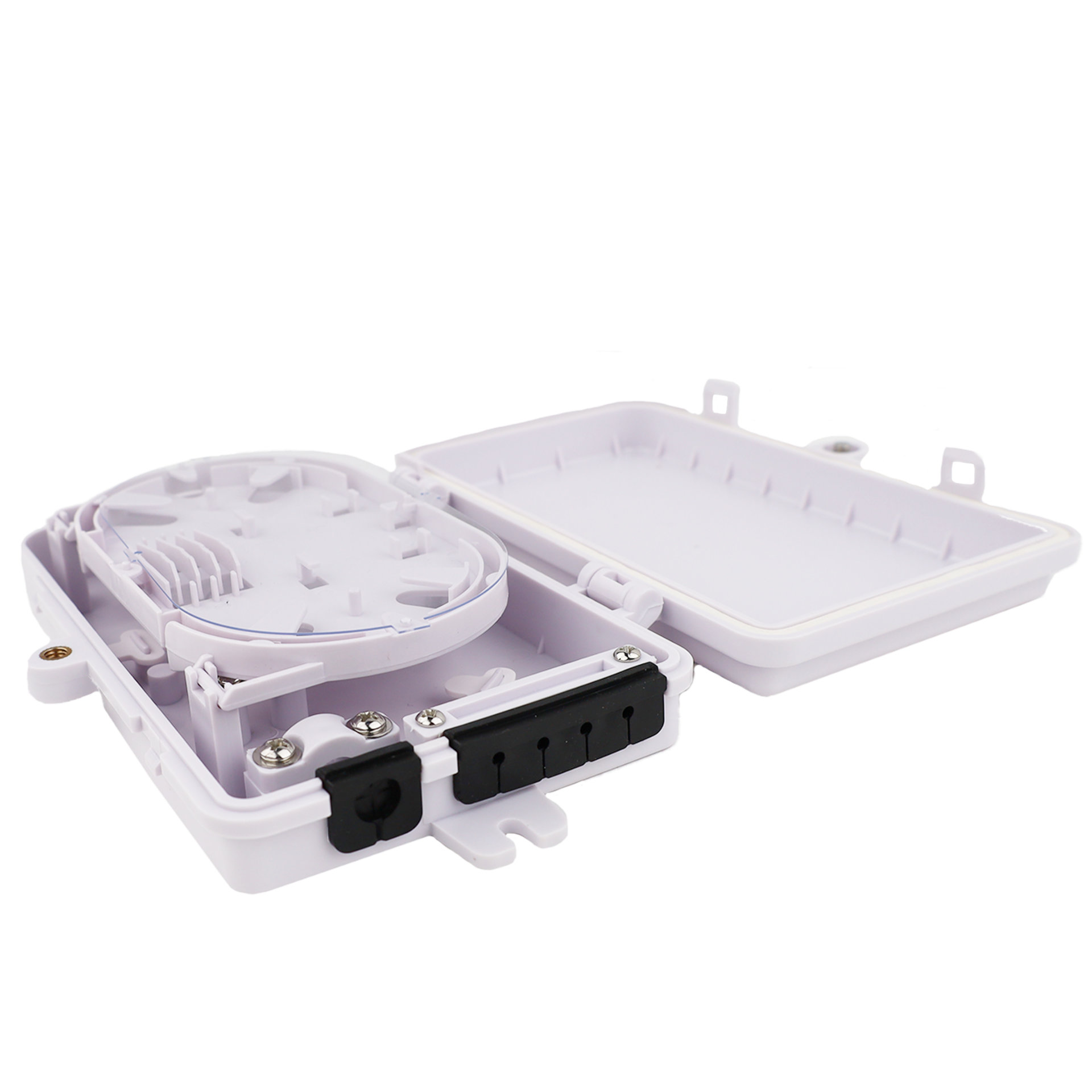

4 Fiber Wall Mount Termination Box - Splice Tray Included - 5 Ports (x1) at 8mm and (x4) at 3mm

The FOTB-X04 fiber optic wall mount termination box is used primarily in residential buildings to house spliced pigtails or fiber optic connectors on the wall. In order to prevent any unauthorized access the box door is equipped with a specialized screw that requires a key.

In FTTH applications, a termination box is a distribution box specially designed for the management of fiber cables. Its core use is to terminate fiber optic cables and connect the cable’s core and pigtail. The typical termination box consists of three parts, the fiber connector protection element, the internal components, and the housing. Its internal components are typically encapsulated in an IP-rated housing made of impact-resistant and sturdy materials that can protect against damage caused during operation and placement. Fixtures, fixed fiber trays and the support frame are part of the internal components of a fiber termination box. The main component in the internal structure is this supporting frame. To maintain the fibers in an orderly manner. To perform outdoors for a prolonged period, components of the fiber termination box should be dustproof and have good corrosion resistance. Its housing should be easy to open and have provisions for a lock to prevent potential tapping.

In general, the fiber termination box shall be used for agricultural telephone networks, data, and image transmission systems as well as CATV cable TV series. For a variety of fiber optic systems in which optical cables, patch cores and pigtails are interconnected, fiber wall mount termination boxes may be used for distribution and termination. In addition, a fiber termination box may be used for joint fiber pigtails and to protect fiber optic splices.

4 Fiber Wall Mount Termination Box Features

• Small and light-weight
• Reliable and durable
• Easy installation
• Simple maintenence
• Anti-UV, water-proof, dust-proof, anti-aging, and protection level up to IP65
