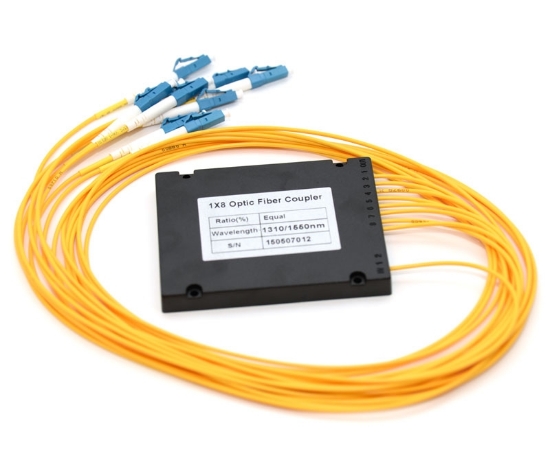

1x8 PLC Fiber Optic Splitter in ABS Box
1 Input, 8 Output Robust ABS Box Type PLC Splitter
Item No: PLCB-1X8
MFG Part#: PLCB-1X8
- *
- *
Fibertronics, Inc. offers a variety of box and cassette type fiber optic splitter modules and products. This PLC Splitter Module is a plastic module called an ABS box with ruggedized fiber jackets of 2mm and up to 3mm with no connectors.
The ABS Box PLC Splitter, with its compact structure and tiny volume, is very easy to use and can be deployed in a variety of locations, including 19-inch racks, cross-connect cabinets, and other devices. The optical fiber splitter divides the fiber optic light into numerous sections at a specific ratio. The ABS module fiber optic splitter takes minimal distortion during usage due to its small form and bending insensitive cables, ensuring stable optical transmission.
A PLC splitter is based on PLC (Planar Lightwave Circuit) technology and is suitable for high density applications. PLC splitters make it possible for the transmission power at each splitter output port to be the identical, simplifying network architecture and lowering expenses. By allowing a single PON Interface to be shared by multiple subscribers, optical splitters have played an essential role in passive optical networks.
Customized designs are also available for customer’s individual needs, please give us a call or e-mail us about anything specifications you need and that you do not see here.
1x8 ABS Box PLC Fiber Optic Splitter Features & Specifications
- 1 x Input Fibers
- 8 x Output Fibers
- Unconnectorized
- Ruggedized 2mm Jacket
- Length: 1.5 Meter Legs
- ABS Box Type Module
- Plug and Play Ready
- Low Insertion Loss
- Low Polarization Dependent Loss
- Good channel-to-channel uniformity
- Excellent Environmental Stability
- Telcordia GR-1221 and GR-1209
- Excellent Mechanical Stability
*Optional Custom Connector Configurations and Combinations Available Upon Request (Contact Us)
1x8 ABS Box PLC Fiber Optic Splitter Applications
- Fiber to The Point (FTTX)
- Fiber to The Home (FTTH)
- Passive Optical Networks (PON)
- Gigabit Passive Optical Networks (GPON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
