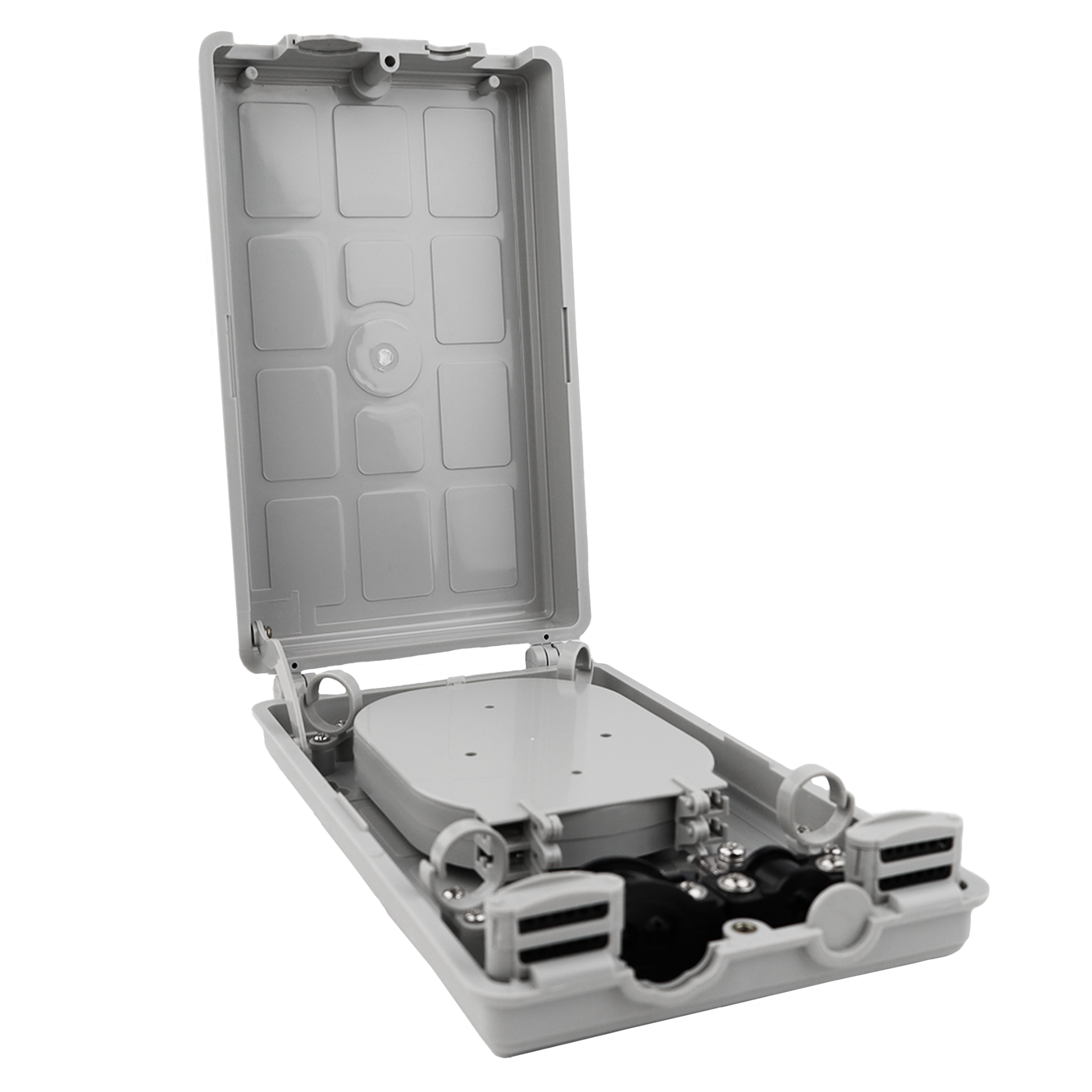

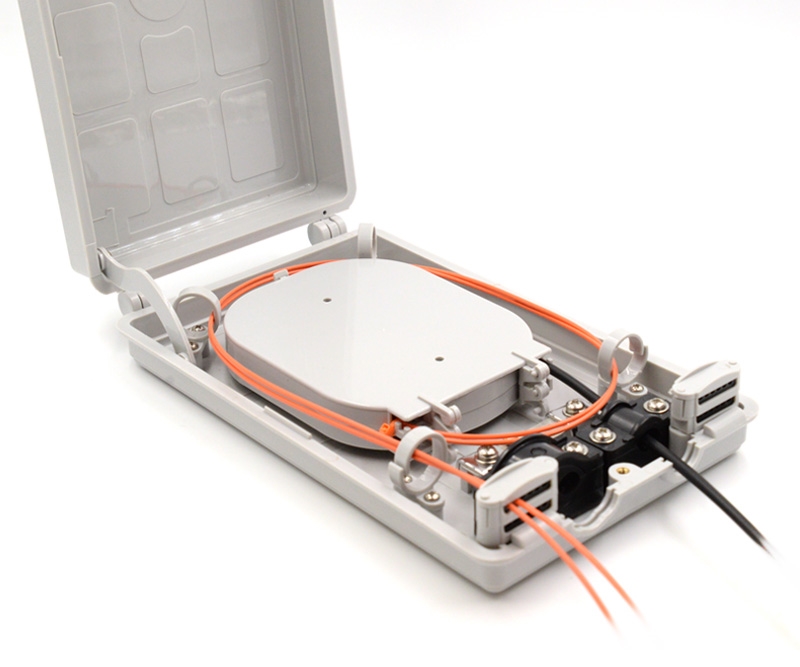

12 Fiber Wall Mountable Termination Box - 2 Input Ports and 24 Output Ports - 2 Splice Trays Included

Fiber Optic Termination Boxes are great for joining fiber optic cable and pigtails. By providing a safe and secure housing they protect fiber optic splices and enable easy distribution. They are primarily used within the telecommunications industry and network equipment rooms.

In FTTH applications, a termination box is a distribution box specially designed for the management of fiber cables. Its core use is to terminate fiber optic cables and connect the cable’s core and pigtail. The typical termination box consists of three parts, the fiber connector protection element, the internal components, and the housing. Its internal components are typically encapsulated in an IP-rated housing made of impact-resistant and sturdy materials that can protect against damage caused during operation and placement. Fixtures, fixed fiber trays and the support frame are part of the internal components of a fiber termination box. The main component in the internal structure is this supporting frame. To maintain the fibers in an orderly manner. To perform outdoors for a prolonged period, components of the FTB should be dustproof and have good corrosion resistance. Its housing should be easy to open and have provisions for a lock to prevent potential tapping.

In general, the fiber termination box shall be used for agricultural telephone networks, data, and image transmission systems as well as CATV cable TV series. For a variety of fiber optic systems in which optical cables, patch cores and pigtails are interconnected, fiber termination boxes may be used for distribution and termination. In addition, a fiber termination box may be used for joint fiber pigtails and to protect fiber optic splices.

Wall Mountable Termination Box Features

• The structure of the FOTB-001 is innovative and designed in a up-down bisection. It is easy to install simply by untighneting the fixing nut. This allows fiber optic cables and fiber pigtails to pass in and out in a single slide.
• The housing is made of high strenght polycarbonate plasti which provided mechanical strength and insure long-lasting reliability.
• The tray makes use of a Slide-In-Lock and has an opening angle of 90°. Making it easy to install and maintain.
• Elastic material is used to secure fiber pigtails. When the end of the fiber pigtail can not be determined it is possible to wind the fiber into the clasp. If needed the active connector can be intalled outside of the housing and therefor it can connect termination equipment without requiring connecting adapter.
• The housing is made of high strenght polycarbonate plastic which provides mechanical strength and insures long-lasting reliability.
• Protection Class IP55
• Easy installation
• Simple maintenance
