Wall Mount Termination Box with Double Door - Lockable - Includes x1 Slack Spools - Accepts x12 LGX Adapters Plates
Wall Mount Termination Box with Double Door - Lockable - Includes x1 Slack Spools - Accepts x12 LGX Adapters Plates (not included)

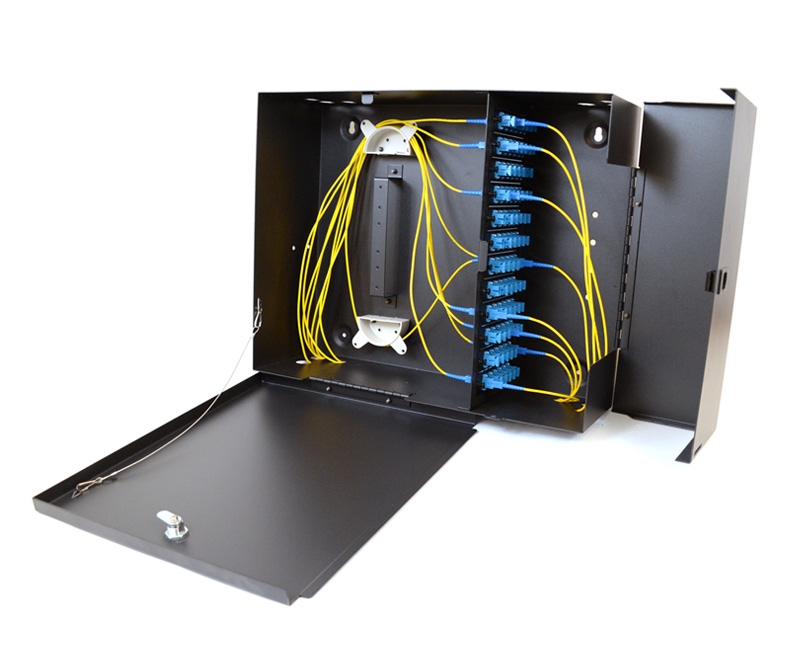

The WTB-FWM-6012 is a wall mount box designed for use in small capacity communication systems and features a sturdy and compact structure. It offers an easy point of convergence for splicing and connecting in wall mount applications. The cabinet is composed of two parts, one links with optical cables for fusion connections between optical cable and fiber pigtails. The second part connects with patch cords. The ingress and egress openings of the box each have a carefully built system for managing fiber and cable. It is wall mountable with lockable doors for added security.
Fibertronics, Inc. offers wall mount termination boxes with one or two doors. This wall mount termination box provides a safe and clean environment for fiber optics. Various accessories help avoid any unexpected damage to the fiber.
Fiber Optic Termination Boxes are great for joining fiber optic cable and pigtails and are specifically designed for the management of fiber cables. By providing safe and secure housing they protect fiber optic splices and enable easy distribution. They are primarily used within the telecommunications industry and network equipment rooms. The terminal boxes are divided into a wall-mounting type, a fixed (rack-mounting) and a flexible (drawing-out, pushing into) type terminal boxes.
**Please Note: Mounting Hardware is not included
If you have any questions about our various indoor wall mount boxes, please reach out to one of our specialists, which you can find on our Contact page.
Wall Mount Termination Box Features & Specifications
- 12 LGX Adapter Panels
- 1 Slack Spool
- Compact
- High Density
- Swing-out Panel
- Powder Coated
- 1 Outer Door with padlock option (Padlock not included)
- 1 Inner Door with keyed lock
- Screw Holes on the rear panel
- Material: 16 Gauge Powder Coated Steel
- Height: 415mm (16.5")
- Width: 517mm (20.0")
- Depth: 163mm (6.5")
- Weight: 9.43kg (20.78lbs)
Wall Mount Termination Box Accessories
- Keys: 2
- Cable Ties: 5
- Grommets: 12
- Cable Management Rings: 10
- Laser Warning Labels: 1
- Location Label: 1
- Grounding Screw: 1
