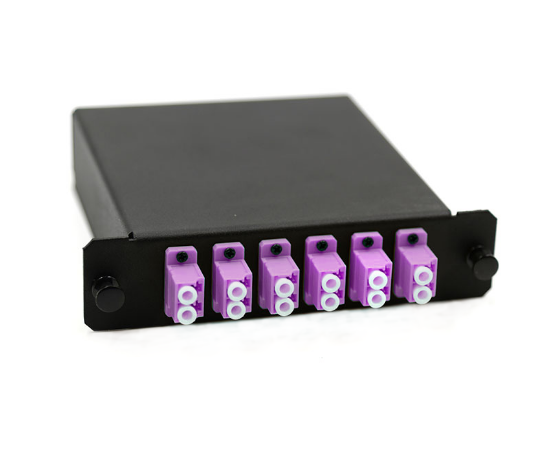

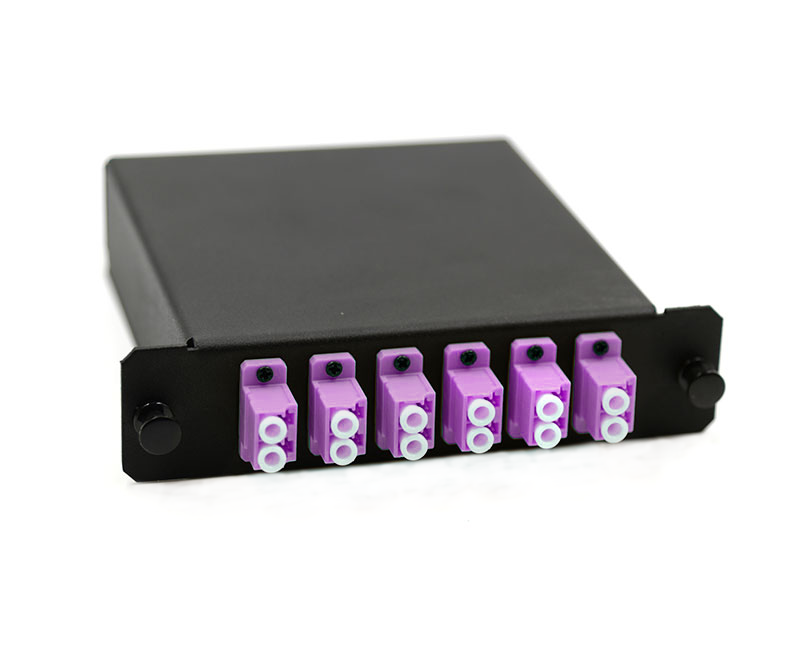

12 Fiber MTP® Cassette - 50/125µm Multimode OM4 - (x12) LC/UPC in the Front and (x1) 12 Fiber MTP/UPC Elite® Female in the Rear - LGX Compatible

12 Fiber MTP® Cassette - 50/125µm Multimode OM4 - (x12) LC/UPC in the Front and (x1) 12 Fiber MTP/UPC Elite® Female in the Rear - LGX Compatible
Item No: MTC-12LCJ14L
MFG Part#: MTC-12LCJ14L
Manufacturer: Fibertronics, Inc.
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$185.95

This LGX footprint 12-fiber MTP/MPO cassette facilitates breakout to 12 LC connectors. It employs LC connectors to minimize insertion loss. Housed within is a fan-out or breakout cable assembly. Utilizing Corning fiber in a ribbon setup, it links to 12 LC connections, which then connect with LC patch cables on the cassette's front and an MTP/MPO 12 APC connector on its rear. It's adaptable for installation in vertical or horizontal MPO cassette holders.

Fibertronics, Inc.'s MTP/MPO cassettes offer a splice-free, cost-effective solution for transitioning from multi-fiber cables to fiber optic patch cables.

Crafted with premium Corning fiber optic cable, our MTP/MPO cassettes are available in various modes: Singlemode OS2 (9/125um), Multimode OM1 (62.5/125um), Multimode OM3 (50/125um), and more. They support a range of common fiber optic connector ports including LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST. The connectors can be configured with either male or female MTP/MPO connectors to suit your requirements.

Integrating our MTP cassettes in data centers offers enhanced manageability and compatibility with modular infrastructure. As connectivity needs evolve, cassettes can be easily swapped out while preserving the existing trunk cable infrastructure.







12 Fiber MTP Cassette Features & Specifications

  • MTP/MPO Cassette Housing
  • 12 LC (Duplex) Port on the front
  • MTP Gender: Female
  • Material: 16 Gauge Powder Coated Steel
  • Dimensions: 1.38'' x 4.29'' x 4.64'' (35 x 109 x 118mm)
  • Insertion Loss: MTP ≤ 0.35db, LC ≤ 0.2db
  • Return Loss: MTP ≥ 60db, LC ≥ 50db
  • LGX Pin Spacing
  • Corning Multimode, OM4, 50/125
  • RoHS Compliant

This LGX footprint 12-fiber MTP/MPO cassette facilitates breakout to 12 LC connectors. It employs LC connectors to minimize insertion loss. Housed within is a fan-out or breakout cable assembly. Utilizing Corning fiber in a ribbon setup, it links to 12 LC connections, which then connect with LC patch cables on the cassette's front and an MTP/MPO 12 APC connector on its rear. It's adaptable for installation in vertical or horizontal MPO cassette holders.

Fibertronics, Inc.'s MTP/MPO cassettes offer a splice-free, cost-effective solution for transitioning from multi-fiber cables to fiber optic patch cables.

Crafted with premium Corning fiber optic cable, our MTP/MPO cassettes are available in various modes: Singlemode OS2 (9/125um), Multimode OM1 (62.5/125um), Multimode OM3 (50/125um), and more. They support a range of common fiber optic connector ports including LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST. The connectors can be configured with either male or female MTP/MPO connectors to suit your requirements.

Integrating our MTP cassettes in data centers offers enhanced manageability and compatibility with modular infrastructure. As connectivity needs evolve, cassettes can be easily swapped out while preserving the existing trunk cable infrastructure.







12 Fiber MTP Cassette Features & Specifications

  • MTP/MPO Cassette Housing
  • 12 LC (Duplex) Port on the front
  • MTP Gender: Female
  • Material: 16 Gauge Powder Coated Steel
  • Dimensions: 1.38'' x 4.29'' x 4.64'' (35 x 109 x 118mm)
  • Insertion Loss: MTP ≤ 0.35db, LC ≤ 0.2db
  • Return Loss: MTP ≥ 60db, LC ≥ 50db
  • LGX Pin Spacing
  • Corning Multimode, OM4, 50/125
  • RoHS Compliant
Products specifications
Attribute nameAttribute value
Adapter TypeLC/UPC
Mode

MTP GenderFemale
Fiber Count12 Fiber
TypeLGX
