Ultra space saving designs - 250µm color coded bare fibers with 12 bare fibers per subunit - available in all fiber modes - meets the applications requirement of National Electric Code (NEC) Article 770 and are OFNP rated.
Fibertronics, Inc. 12 fiber micro distribution cable is
composed of a single tube or an optional central member,
aramid yarn, an aramid ripcord, and a PVC outer jacket.

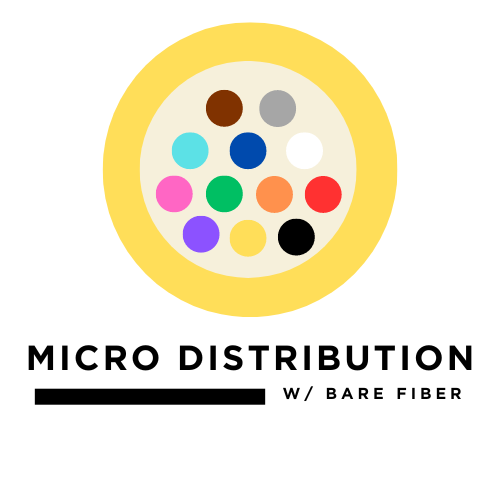

Each sub-unit consists of 12 colored glass fibers surrounded
by aramid yarn with a PVC jacket 2.00 mm in diameter. All
component materials meet the EU RoHS and REACH Directive
standards. Sub-units can be color-coded or sequentially
numbered.
Micro Distribution Cable is available in 12 TIA standard
colors or special-order colors. UL Listed OFNP cables are
available, and unlisted, unrated cable can be supplied to
accommodate special needs. Standard surface print denotes
construction, NEC rating and fiber type, and includes footage
markers. Custom print can also be accommodated.
