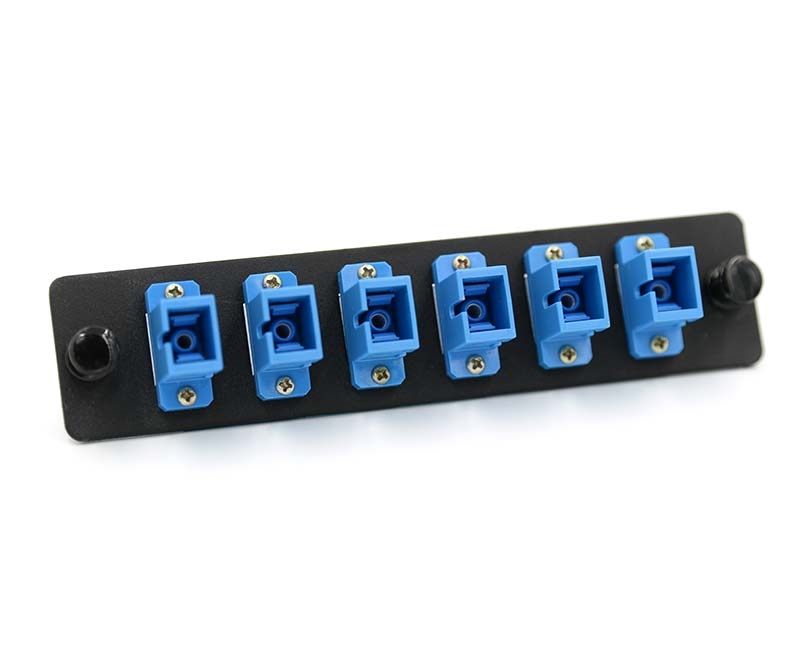

The Fibertronics, Inc. Optiwave™ LGX-SCSX-6B adapter plate with 6 blue SC simplex adapters is designed to fit any standard rack mount and wall mount fiber optic enclosure that has a standard LGX chassis.
The Optiwave™ adapter plates have standard LGX dimensions of 13.03cm (5.130") x 2.92cm (1.150") with a center pin spacing of 11.80cm (4.646"). This standard size allows all Optiwave™ plates to easily fit all LGX style patch panels. Fibertronics Inc. offers adapter plates with all standard connector types.
Optiwave™ 6 Fiber SC/UPC Adapter Plate Features & Specifications
- LGX footprint with our standard 11.80cm (4.646") pin spacing
- Dimensions: 13.03cm (5.130") x 2.92cm (1.150")
- 16 Gauge Black Powder Coated Steel
- The Optiwave™ adapter plate is interchangeable allowing for use in a wide range of products
Our other available Optiwave™ LGX Compatible Fiber Optic Adapter Plates include:
- Blank Adapter Panel – LGX-BLANK
- 12 Fiber LC/UPC – 62.5/125µm Multimode OM1
- 6 Fiber SC/UPC - 62.5/125µm Multimode OM1
- 12 Fiber SC/UPC - 62.5/125µm Multimode OM1
- 6 Fiber ST/UPC - 62.5/125µm Multimode OM1
- 12 Fiber ST/UPC - 62.5/125µm Multimode OM1
- 6 Fiber FC/UPC - 62.5/125µm Multimode OM1
- 12 Fiber FC/UPC - 62.5/125µm Multimode OM1
- 12 Fiber LC/UPC - 50/125µm Multimode OM3/OM4/OM5
- 24 Fiber LC/UPC - 50/125µm Multimode OM3/OM4/OM5
- 6 Fiber SC/UPC - 50/125µm Multimode OM3/OM4/OM5
- 12 Fiber SC/UPC - 50/125µm Multimode OM3/OM4/OM5
- 6 Fiber ST/UPC - 50/125µm Multimode OM3/OM4/OM5
- 12 Fiber ST/UPC - 50/125µm Multimode OM3/OM4/OM5
- 6 Fiber FC/UPC - 50/125µm Multimode OM3/OM4/OM5
- 12 Fiber FC/UPC - 50/125µm Multimode OM3/OM4/OM5
- 12 Fiber LC/UPC and LC/APC – 9/125µm Singlemode OS2
- 24 Fiber LC/UPC and LC/APC – 9/125µm Singlemode OS2
- 6 Fiber SC/UPC and SC/APC – 9/125µm Singlemode OS2
- 12 Fiber SC/UPC and SC/APC – 9/125µm Singlemode OS2
- 6 Fiber ST/UPC – 9/125µm Singlemode OS2
- 12 Fiber ST/UPC – 9/125µm Singlemode OS2
- 6 Fiber FC/UPC and FC/APC – 9/125µm Singlemode OS2
- 12 Fiber FC/UPC and FC/APC – 9/125µm Singlemode OS2
- (x6) MTP/APC – 9/125µm Singlemode OS2
- (x6) MTP/UPC – 50/125µm Multimode OM3/OM4/OM5
- (x12) MTP/APC – 9/125µm Singlemode OS2
- (x12) MTP/UPC – 50/125µm Multimode OM3/OM4/OM5
