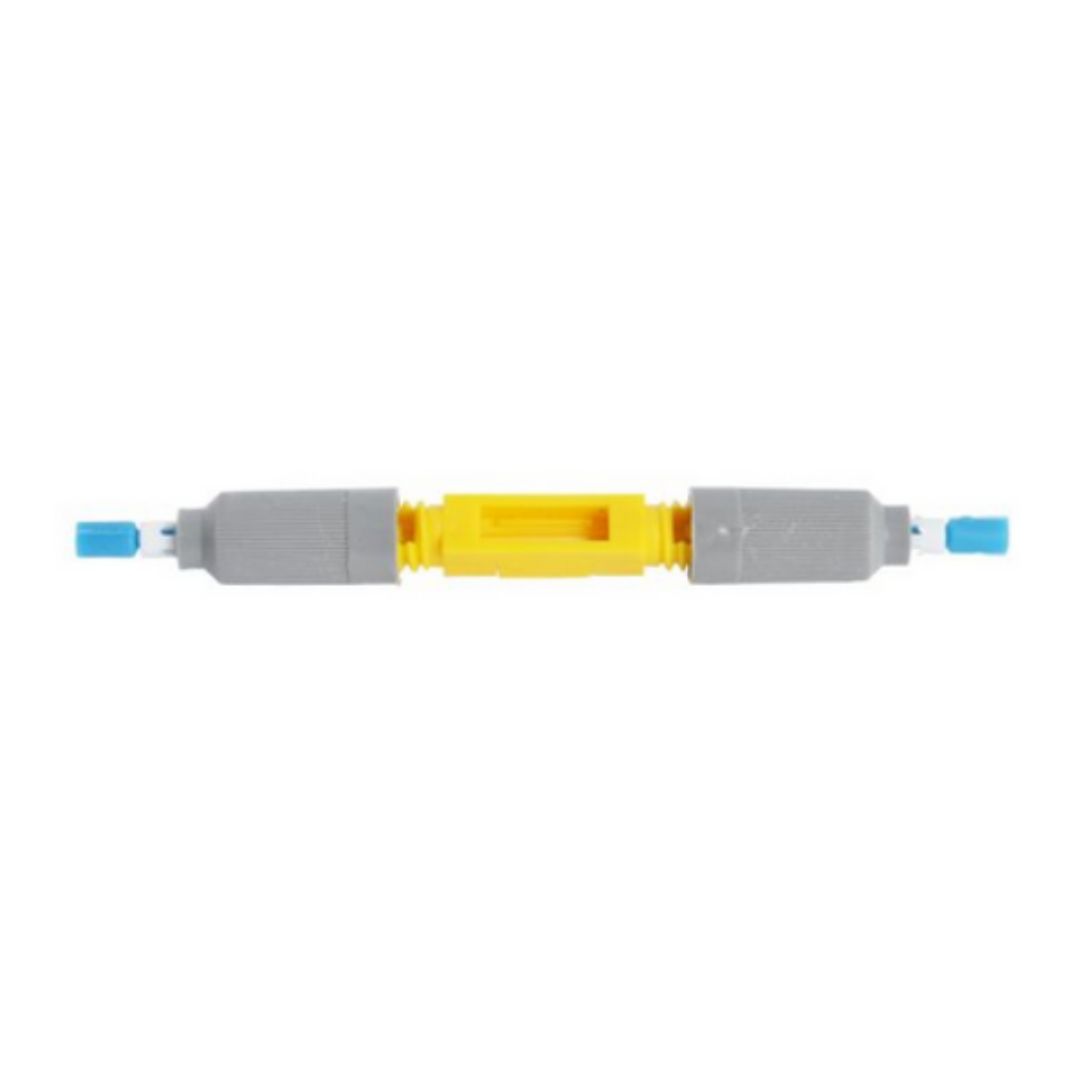

Universal ULTRASplice Mechanical Splice
The ULTRAsplice is for 125um clad fiber in singlemode and multimode applications. The splice accepts any combination of buffer sizes from 250um to 900um. Average loss is less than .2dBwith a fiber retention of over 2 lbs. Cleave and insert fibers while checking location in the glass capillary, secure by twisting a locking nut.
The ULTRAsplice is a high performance, cost effective, mechanical fiber optic splice that is reusable and easy to install for emergency or permanent installations. The splice features a patented glass capillary alignment tube, pre-loaded with index matching gel, to allow inspection of fiber location during installation. Additionally, the collet locking nuts allow users to tune and secure the fiber for optimum alignment and retention.
ULTRASplice Mechanical Splice Benefits
- The glass capillary allows inspection of fiber misalignments. Using a Visual Fault Locator, the light will amplify the fiber misalignment point and allow the user to fine tune the splice.
- When fibers are properly aligned, no light will be visible. This feature allows the installer to obtain a low loss splice quickly and efficiently.
ULTRASplice Mechanical Splice Features
- The ULTRAsplice mechanical splice is for 125um clad fiber in singlemode and multimode applications. The splice accepts any combination of buffer sizes from 250 um to 900um. Average loss is less than .2dBwith a fiber retention of over 2 lbs.
- Cleave and insert fibers while checking the location in the glass capillary, secure by twisting a locking nut.
- The patented ULTRAsplice is a high performance, cost effective, mechanical fiber optic splice that is reusable and easy to install for emergency or permanent installations.
- The splice features a patented glass capillary alignment tube, pre-loaded with index matching gel, to allow inspection of fiber location during installation. Additionally, the collet locking nuts allow users to adjust and secure the fiber for optimum alignment and retention.
- The ULTRASplice is a fully mechanical fiber optic splice for singlemode and multimode splicing. No fixtures or special tools are required, and they are tunable and reusable. An uncovered glass capillary allows visual inspection for proper fiber location. The ULTRASplice mechanical splice can be used in any combination of buffer sizes.
