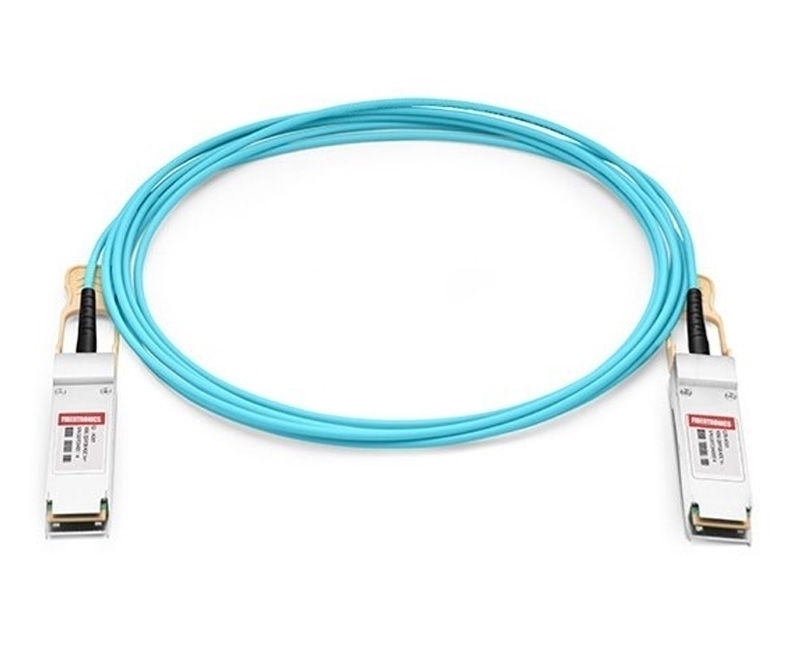

Arista Networks AOC-Q-Q-100G-3M Compatible 100G QSFP28 to QSFP28 Active Optical Cable - 3 Meters in Total Length

This is a high-quality Arista Networks AOC-Q-Q-100G-3M Compatible 100G QSFP28 Parallel AOC (Active Optical Cable). A cost-effective solution that provides high bandwidth and transmission rates over short distances. 100Gb/s QSFP28 AOC is a high data rate parallel active optical cable (AOC). 4 independent data transmission channels and 4 data receiving channels.  Each channel is capable of 25Gb/s operation. Each AOC active fiber optic cable is 100% optically inspected and tested for compatability before shipping.

An active fiber optic cable has modules at both ends that allow direct communication between devices via the permanently attached fiber optic cable. Both ends of the cable have permanent connectors. It is simply a transceiver product that is installed permanently in a fiber optic cable. They are most commonly seen in data centers and High-Performance Computing (HPC) applications.

Fibertronics, Inc. offers breakout AOC’s also known as fanout AOC. A breakout active optical cable is able to convert a high-speed channelized port into many low-speed ports. There are separate modules on the two sides, as well as different data speeds.

Active Optical Cables Features & Specifications

• 100Gb/s QSFP28 Parallel Active Optical Cable
• Multirate capability: 10Gb/s to 28Gb/s per channel
• QSFP28 high-density form factor
• Hot pluggable
• RoHS compliance
• PVC (OFNR) Riser Jacket
• Temperature Range: 0°C to 70°C
• Available in various lengths

Active Optic Cable Options Available:

(All are available as breakout AOC's too)

• 100G QSFP28 to 4x SFP28 AOC
• 10G SFP+ to SFP+ AOC
• 25G SFP28 to SFP28 AOC
• 40G QSFP+ to QSFP+ AOC
• 40G QSFP+ to 4x SFP+ AOC
• 40G QSFP+ to 8x LC AOC
• 100G QSFP28 to 4x SFP28 AOC
• 56G QSFP+ to QSFP+ AOC
