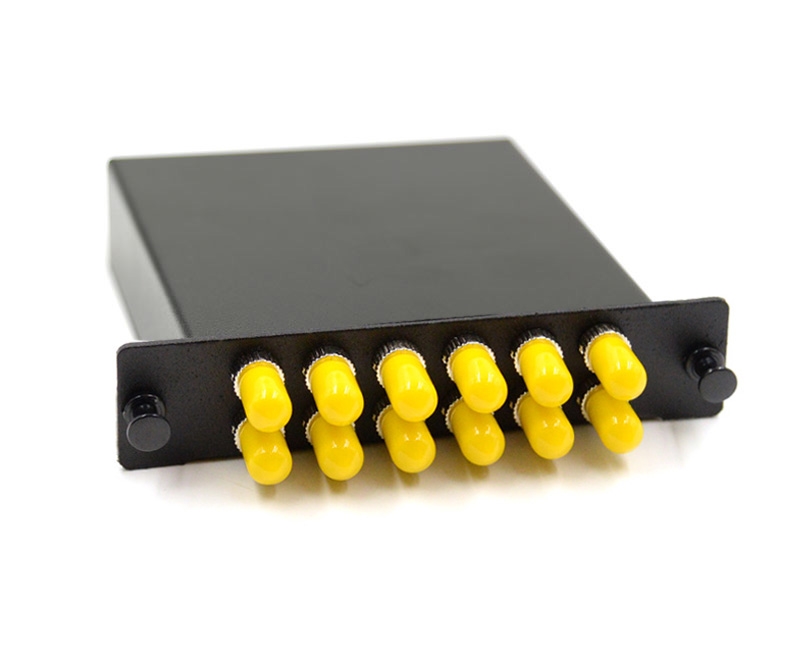

Optiwave™ 12 Fiber MPO Cassette - 62.5/125µm Multimode OM1 - (x12) ST/UPC in the Front and (x1) 12 Fiber MPO/UPC Standard in Rear

The Fibertronics, Inc. OptiWave™ MPO Cassette features an LGX footprint and enables seamless breakout from a 12 fiber MPO/UPC connector at the rear to 12 ST/UPC connectors at the front. This cassette uses high-quality Corning OM1 multimode fiber in a ribbon configuration, broken out to 12 pre-terminated ST connections.

Inside, the unit contains a fan-out cable assembly for efficient signal routing. Designed for flexibility, the cassette fits into both vertical and horizontal LGX-compatible MPO cassette holders.

Fibertronics MPO cassettes provide a no-splice, plug-and-play solution-eliminating the need for splice-on pigtails. These cassettes support multiple fiber types including Singlemode OS2 (9/125μm), Multimode OM1 (62.5/125μm), Multimode OM3 (50/125µm), and others. They are available with a range of connector types: LC, LC/APC, SC, SC/APC, FC, FC/APC, ST, and more. Options for male or female MPO connectors are also available to suit specific network designs.

In data centers and modular networks, the OptiWave™ LGX compatible cassette enhances manageability and scalability. As connectivity demands evolve, cassettes can be quickly replaced without disturbing existing trunk cabling infrastructure.

12 Fiber MPO Cassette Features & Specifications

• LGX Pin Spacing
• Material: 16 Gauge Powder Coated Steel
• Front Interface : 12 ST/UPC (Duplex) Ports
• Rear Interface: MPO/UPC 12-Fiber Connector
• MPO Gender: Male or Female
• Fiber Type: Corning Multimode OM1, 62.5/125μm
• Dimensions: 1.38'' x 4.29'' x 4.64'' (35 x 109 x 118mm)
• Compatible with vertical and horizontal LGX-style holders
• RoHS Compliant
